Lexmark MX610 - Flatbed Assembly Removal; Control Panel Ribbon Cable Removal; Speaker Cable Removal

Flatbed assembly removal
1 Remove the ADF assembly. See “ADF unit removal” on page 333.
2 Remove the scanner assembly from the MFP. See “Scanner assembly removal” on page 336.
3 Remove the control panel assembly. See “Control panel assembly removal” on page 273.
4 Remove the ADF cable. See “ADF cable removal” on page 339.
5 Remove the USB wireless cable. See “USB wireless cable removal” on page 341.
6 Remove the control panel USB cable. See “USB cable removal” on page 340.
7 Remove the speaker cable. See “Speaker cable removal” on page 343.
8 Remove the wireless control panel cover.
Control panel ribbon cable removal
1 Remove the left cover. See “Left cover removal” on page 239.
2 Remove the scanner front cover. See “Scanner front cover removal” on page 332.
3 Remove the control panel assembly. See “Control panel assembly removal” on page 273.

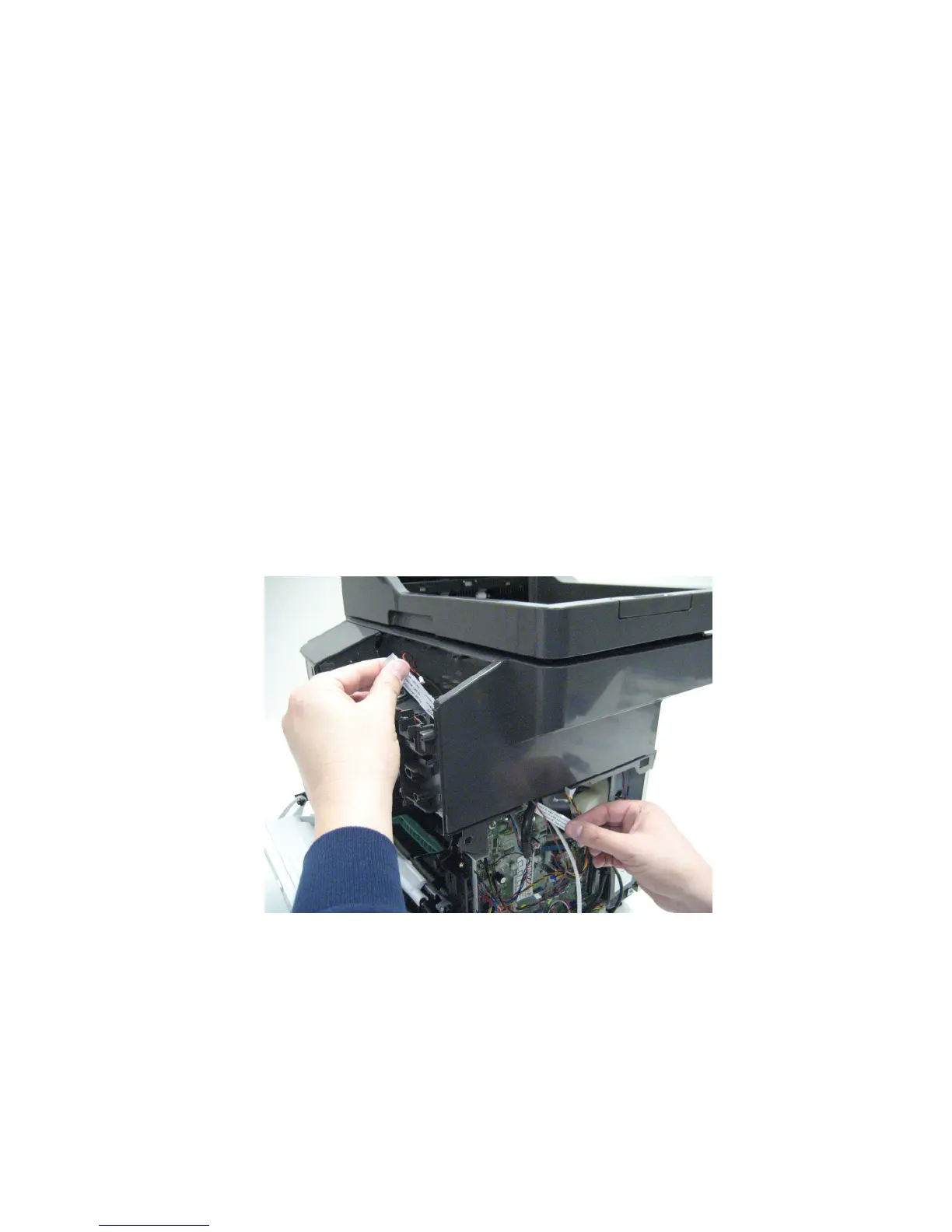

4 Lift the control panel assembly, disconnect the ribbon cable (JUICC1) from the UICC card, and then feed the ribbon
cable through the wire channel.
Speaker cable removal
1 Remove the left cover. See “Left cover removal” on page 239.
2 Remove the controller board shield. See “Controller board shield removal” on page 259.
3 Remove the fan.
4 Remove the scanner front cover. See “Scanner front cover removal” on page 332.
