Lexmark MX610 - ADF Hinge Removal

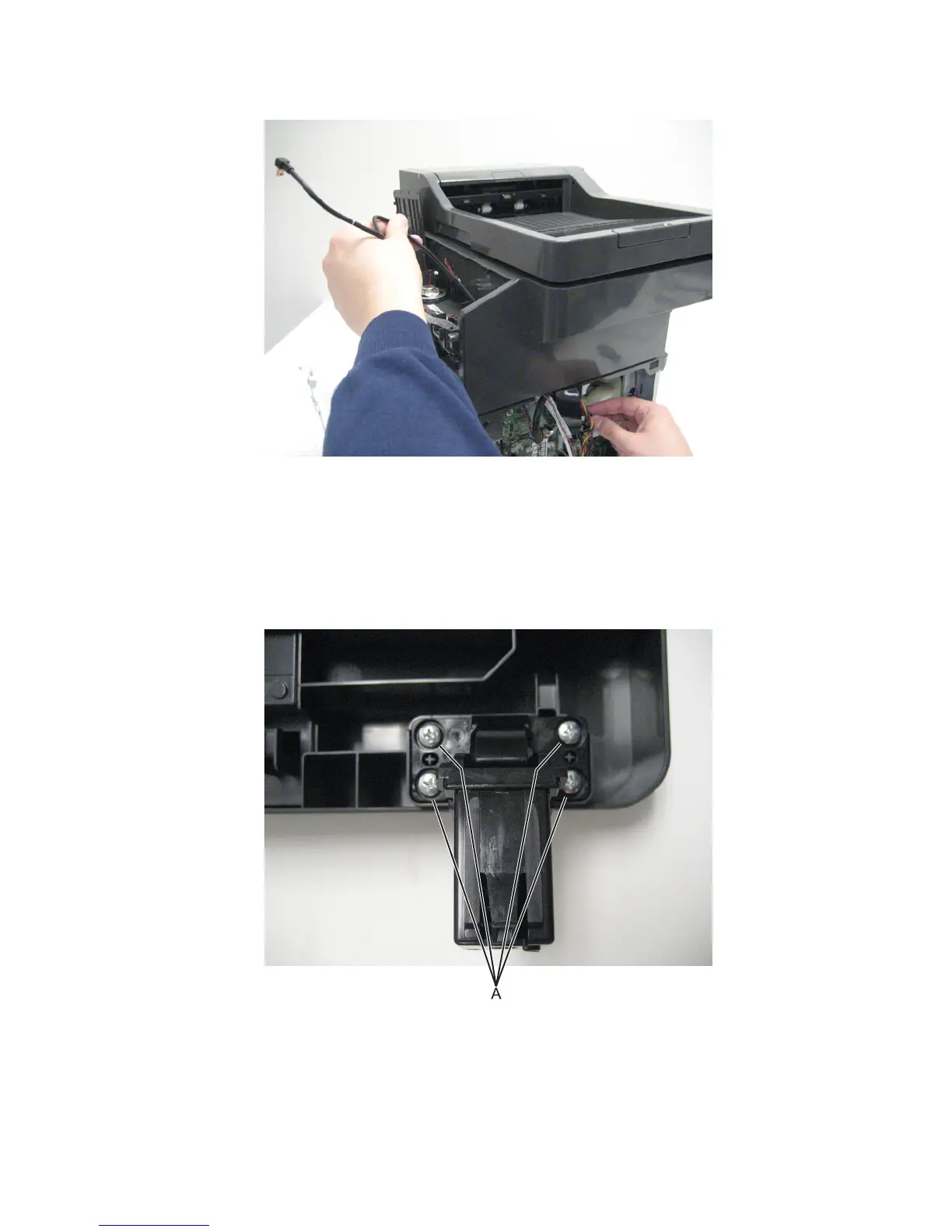

9 Feed the wireless cable through the channel on the left side of the printer.
ADF hinge removal
Note: The removal shown is for the left ADF hinge. The right ADF hinge is removed in a similar manner.
1 Remove the ADF assembly. See “ADF unit removal” on page 333.
2 Remove the four screws (A) securing the ADF hinge to the ADF assembly.
7016
Repair information
342
