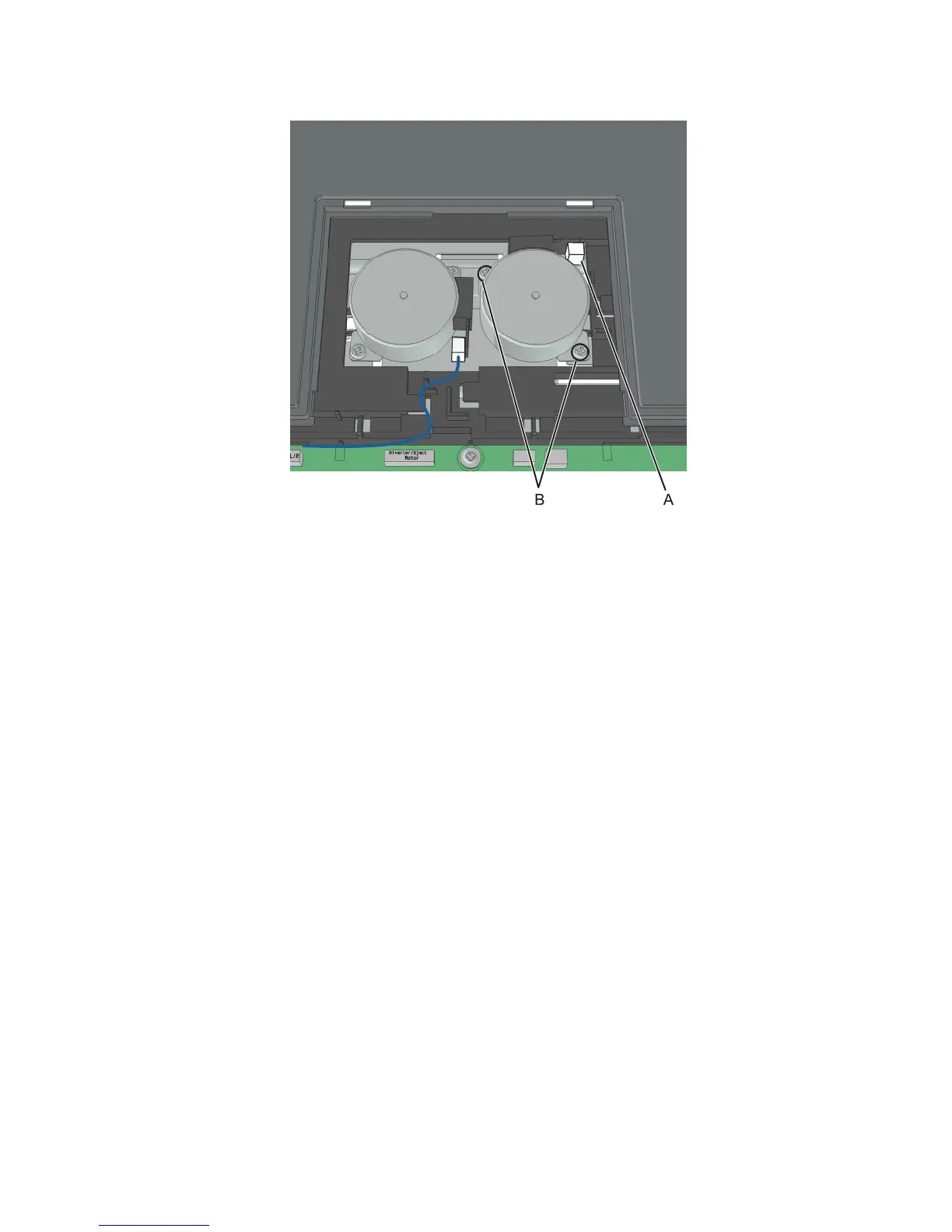

3 Remove the two screws (B) securing the motor, and remove the tamper motor.
Warning—Potential Damage: Be careful not to lose the tamper belt when removing the tamper motor.
Installation note: Make sure to engage the motor gears with the tamper belt.
Stapler right tamper motor removal
1 Remove the stapler service cover. See “Stapler service cover removal” on page 368.
2 Remove the two screws (A) securing the motor.
7016
Repair information
369
