Lexmark MX610 - Keypad Assembly Removal

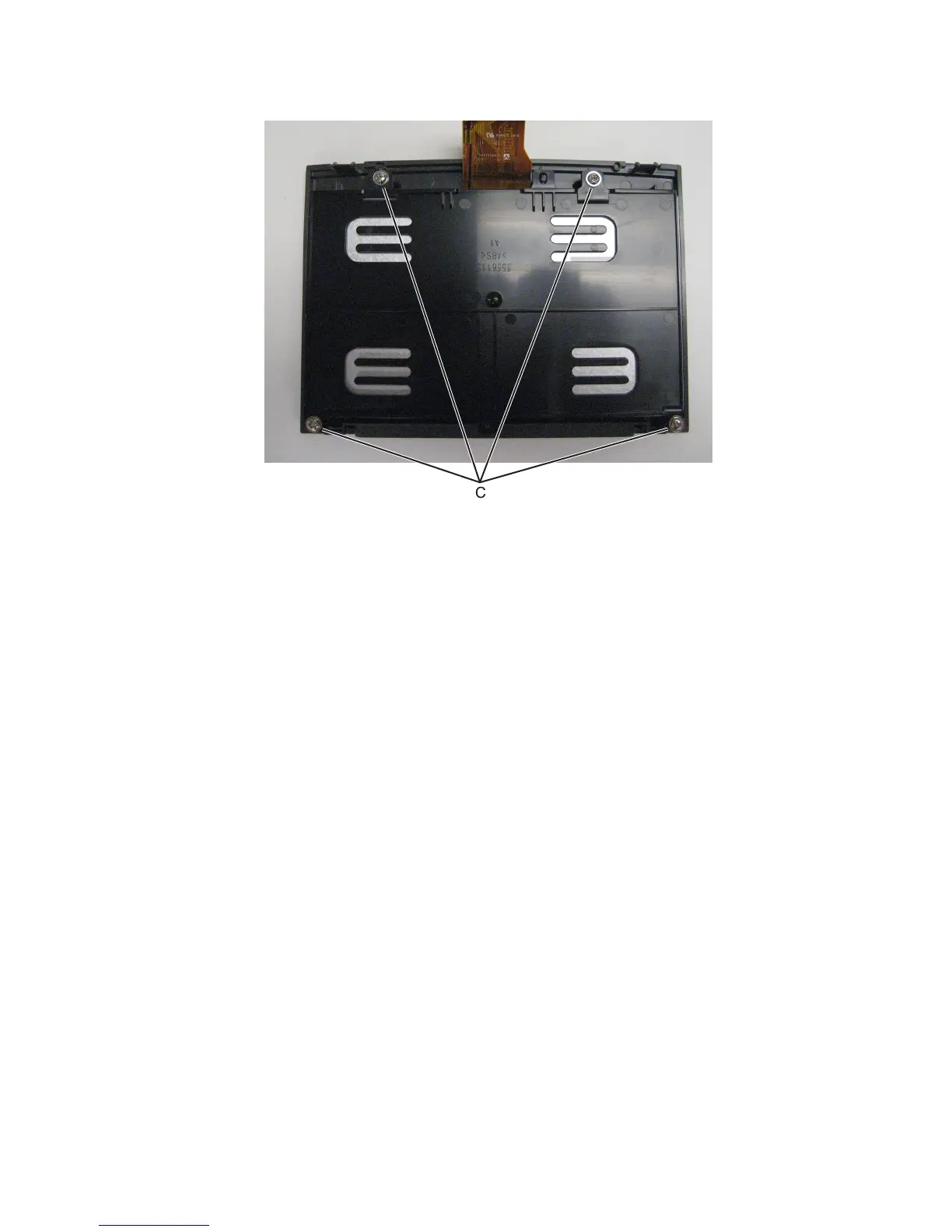

6 Remove the four screws (C).
7 Remove the plastic mounting bracket, and remove the display from the LED bezel.
Keypad assembly removal
1 Remove the control panel assembly. See “Control panel assembly removal” on page 273.
2 Remove the UICC. See “UICC removal” on page 277.
3 Remove the display. See “Display removal” on page 283.
4 Remove the interface card. See “Interface card removal” on page 281.
The keypad assembly remains.
