Lexmark MX610 - Sensor (Stapler bin Full Receive) Removal

Sensor (stapler bin full receive) removal
1 Remove the right cover. See “Stapler right cover removal” on page 355.
2 Remove the left cover. See “Stapler left cover removal” on page 356.
3 Remove the rear cover. See “Stapler rear cover removal” on page 364.
4 Remove the stapler service cover. See “Stapler service cover removal” on page 368.
5 Disconnect the sensor cable CN18 from the controller card.

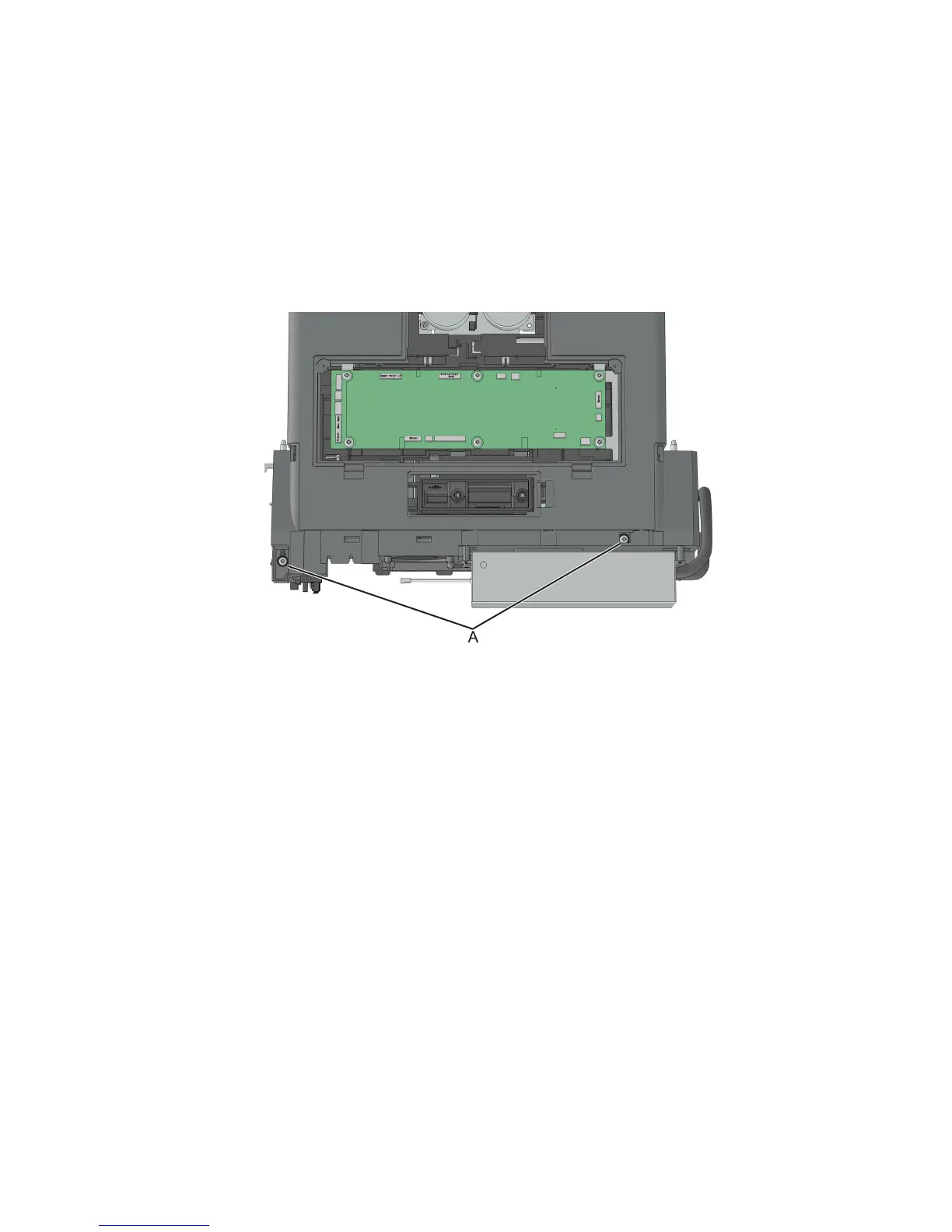

6 Remove the two screws (A) from the top cover.
