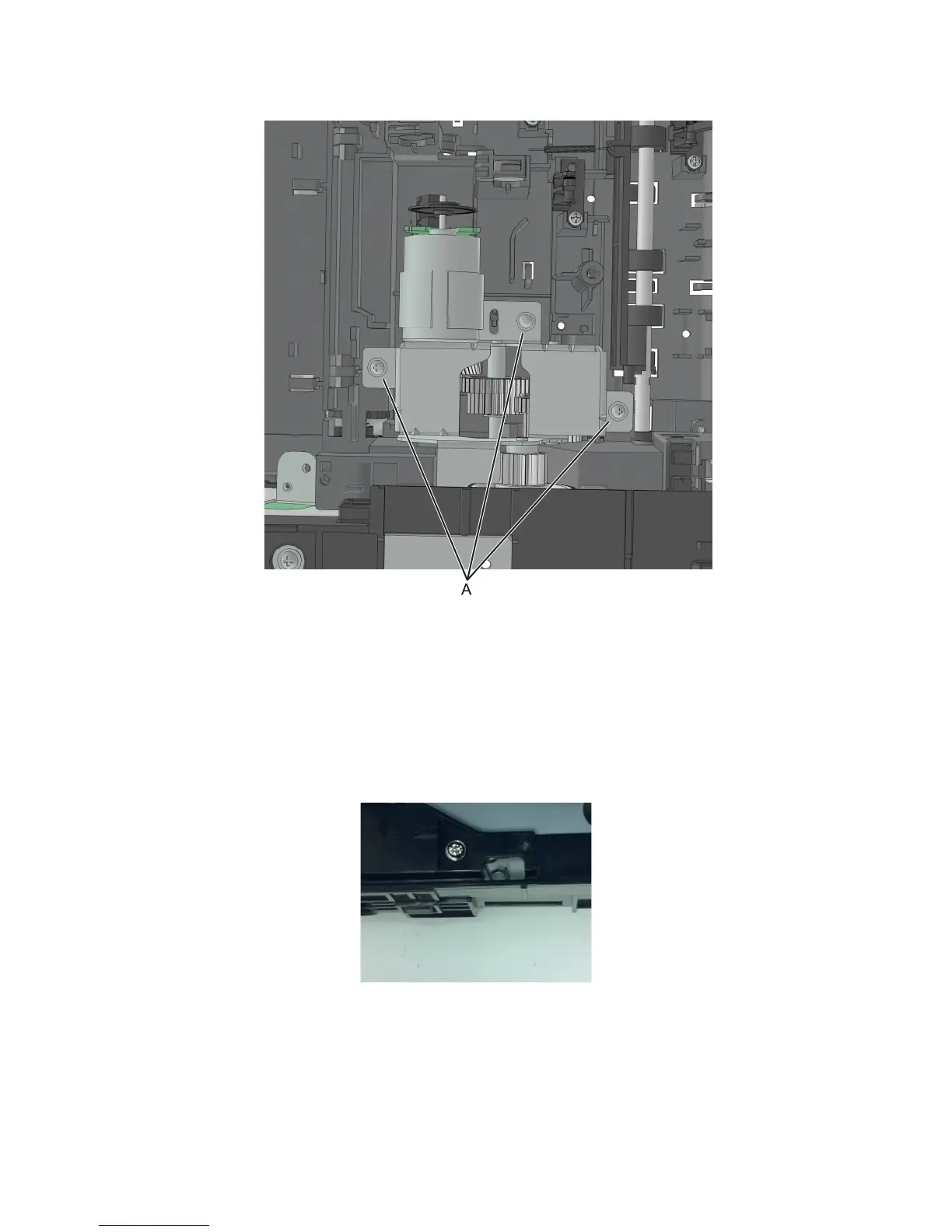

8 Remove the three screws (A).
9 Disconnect the cable from the pick/lift motor gearbox.
Tray guide removal
Left guide
Installation note: Before removing the guide, note the position of the ground spring. It will need to be re‑installed
when the guide is re‑installed.
1 Remove the rear cover. See “Rear cover removal” on page 318.
2 Remove the left cover. See “Left cover removal” on page 239.
7016
Repair information
314
