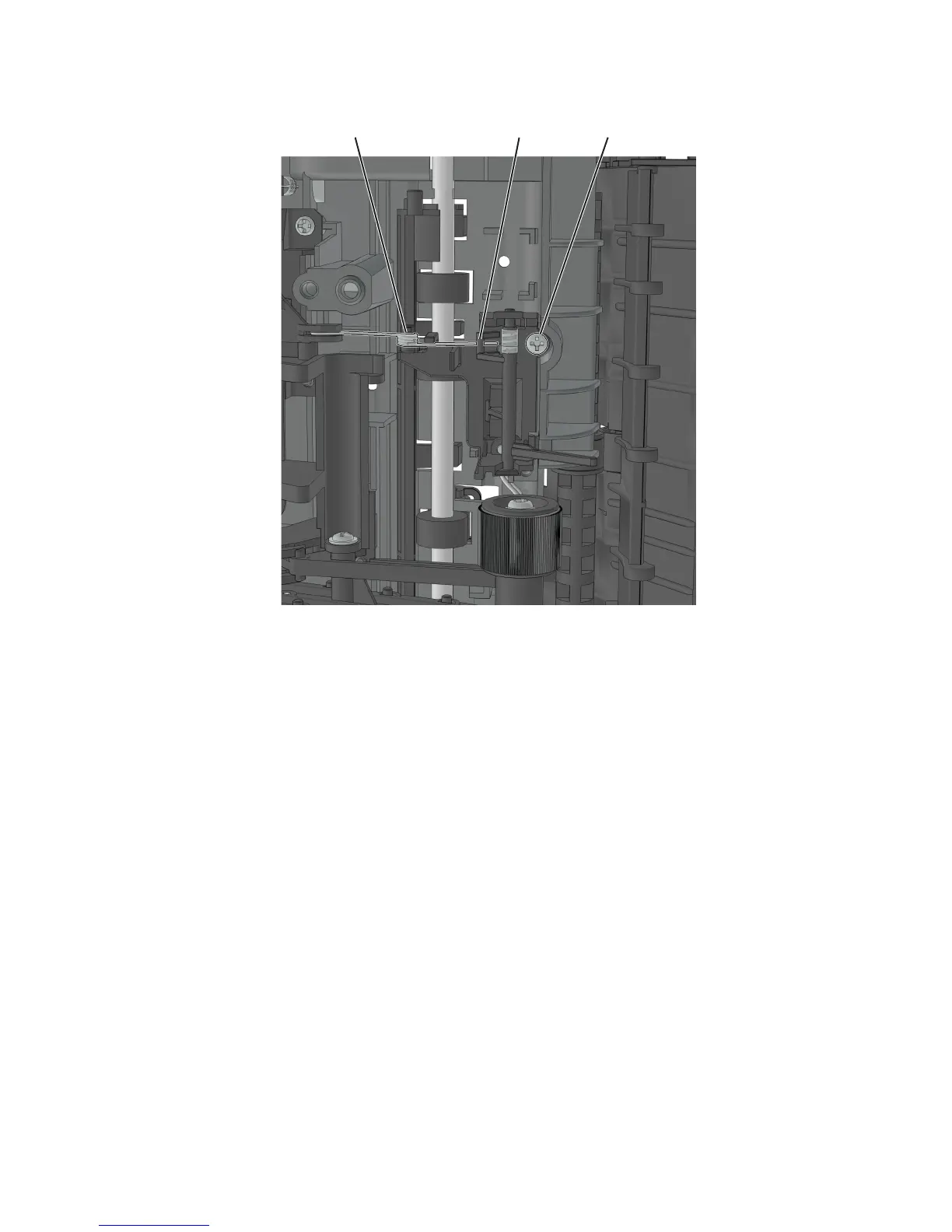

10 Remove the screw (C).
A C
B
Media present sensor flag removal
1 Remove the left cover. See “Left cover removal” on page 239.
2 Remove the rear door and cover. See “Rear exit door removal” on page 317 and “Rear cover removal” on page
318.
3 Remove the power supply. See “Power supply removal” on page 298.
4 Remove the power supply shield. See “Power supply shield removal” on page 298.
5 Remove the duplex. See “Duplex removal” on page 299.
6 Position the printer so that it sits on its left side.
7 Remove the retainer spring (A).
8 Remove the two springs (B).
7016
Repair information
307
