Lexmark MX610 - Bail Removal

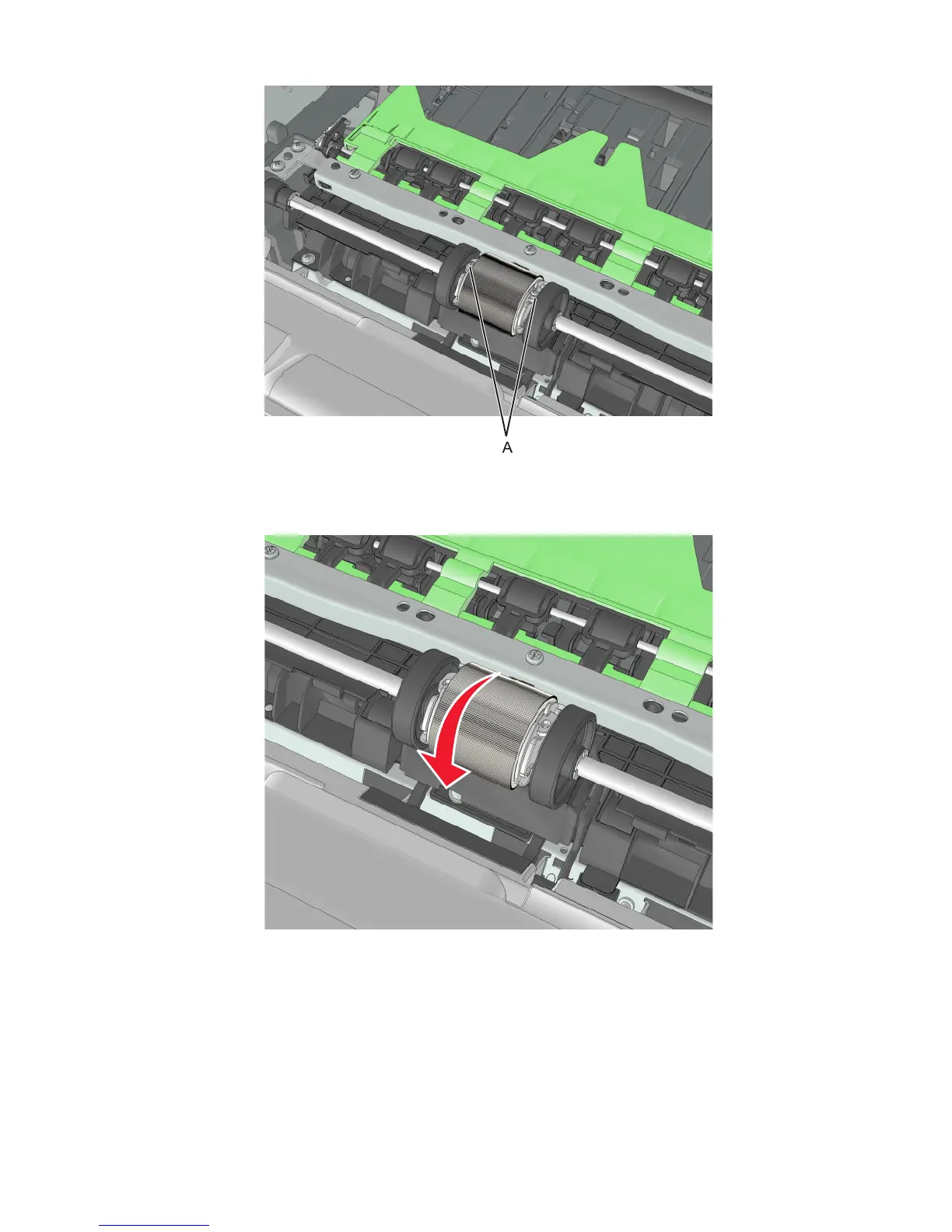

3 Pull the MPF pick roller outward to remove.
Warning—Potential Damage: Do not touch the pick tire with bare hands, as this can damage the pick roller.
Bail removal
1 Remove the MPF pick roller cover. See “MPF pick roller cover removal” on page 288.
2 Rotate the bail.
7016
Repair information
289
