Lexmark MX610 - ADF Cable Removal

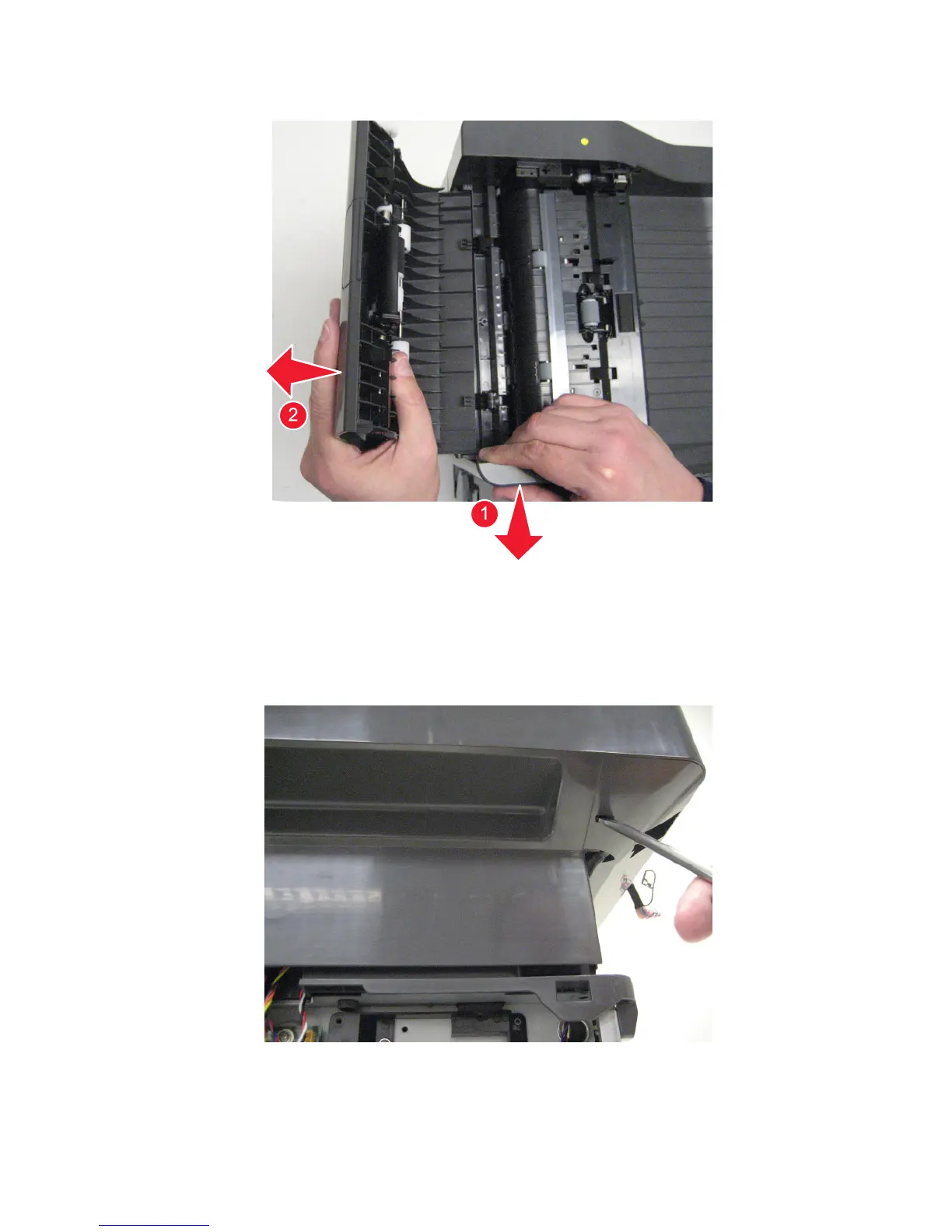

2 Release the cover by gently bending the ADF away from the top cover (1), and then lift the top cover (2) and remove.
ADF cable removal
1 Remove the ADF unit. See “ADF unit removal” on page 333.
2 Using a flat-blade screwdriver, remove the cable cover from the rear of the scanner assembly.
3 Remove the scanner assembly from the MFP.
7016
Repair information
339
