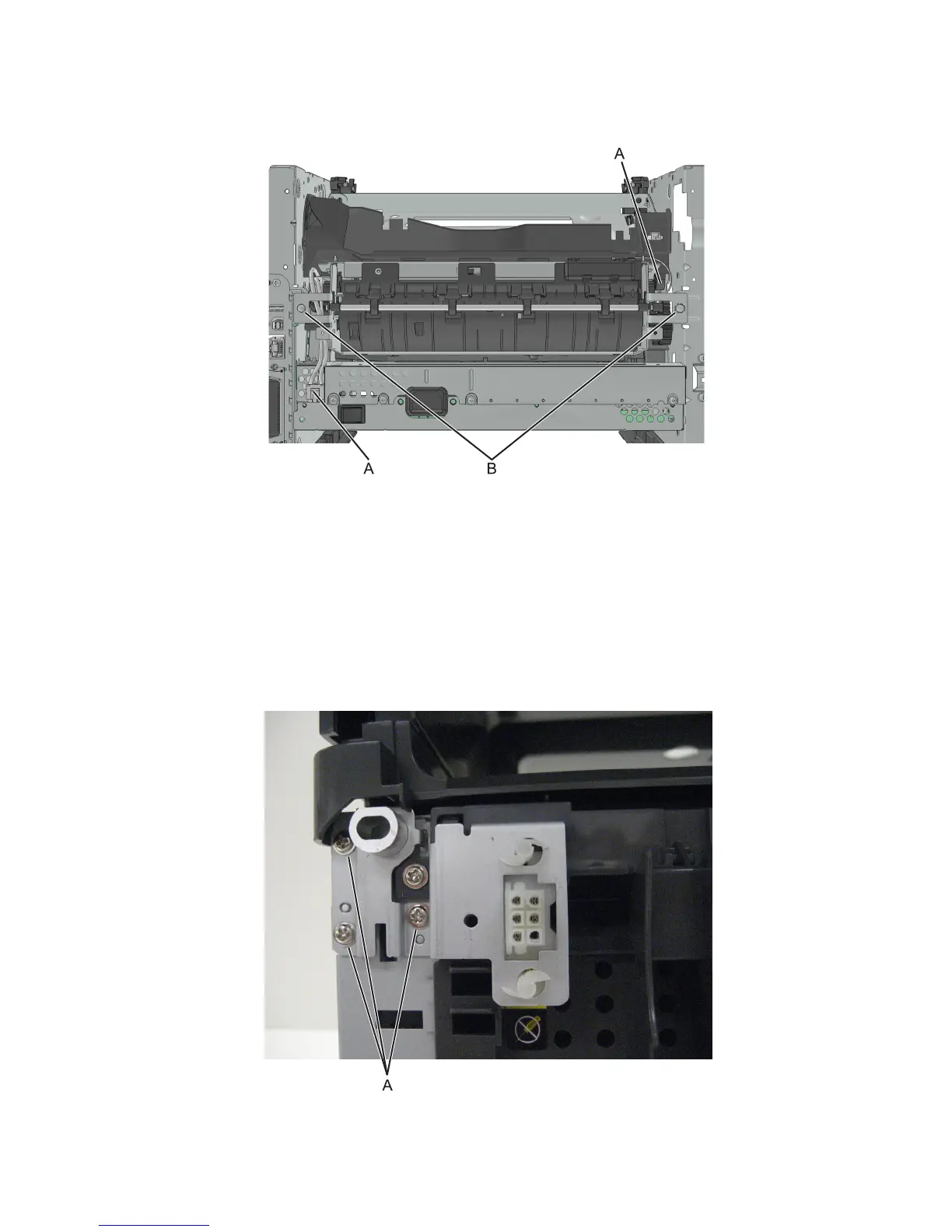

6 Remove the two screws (B) securing the fuser.
Stapler cable removal
1 Remove the right cover. See “Right cover removal” on page 252.
2 Remove the rear cover. See “Rear cover removal” on page 318.
3 Remove the controller board shield. See “Controller board shield removal” on page 259.
4 Disconnect the stapler cable (J56) from the controller board.
5 Remove the three screws (A) from the mounting bracket.
7016
Repair information
321
