Lexmark MX610 - Separator Pad Removal

Separator pad removal
1 Remove the right cover. See “Right cover removal” on page 252.
2 Remove the front access cover. See “Front access cover removal” on page 291.
3 Remove the MPF pick roller cover. See “MPF pick roller cover removal” on page 288.
4 Remove the MPF pick roller. See “MPF pick roller removal” on page 288.
5 Remove the jam access cover. See “Jam access cover removal” on page 290.

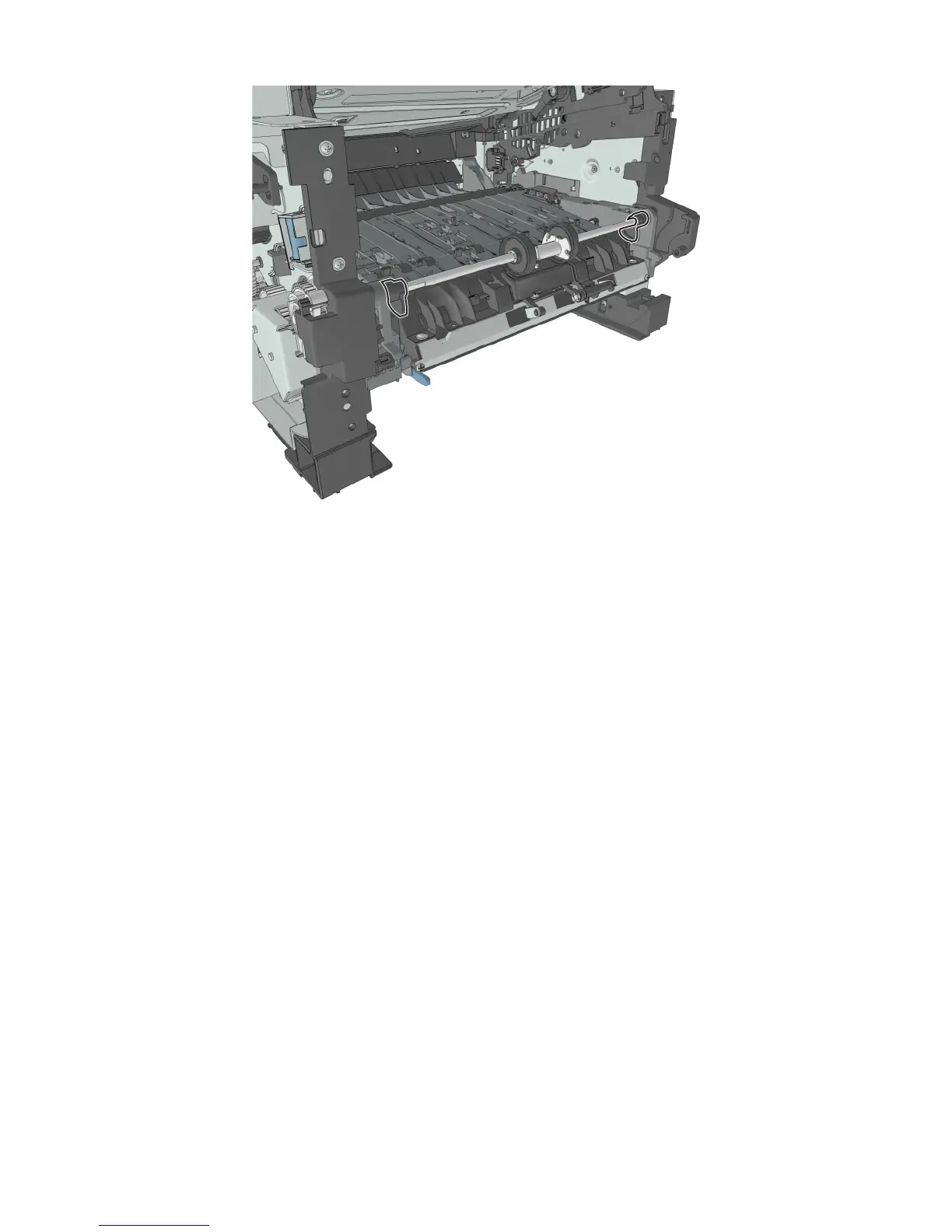

6 Remove the E‑clip (A).
7016
Repair information
295
