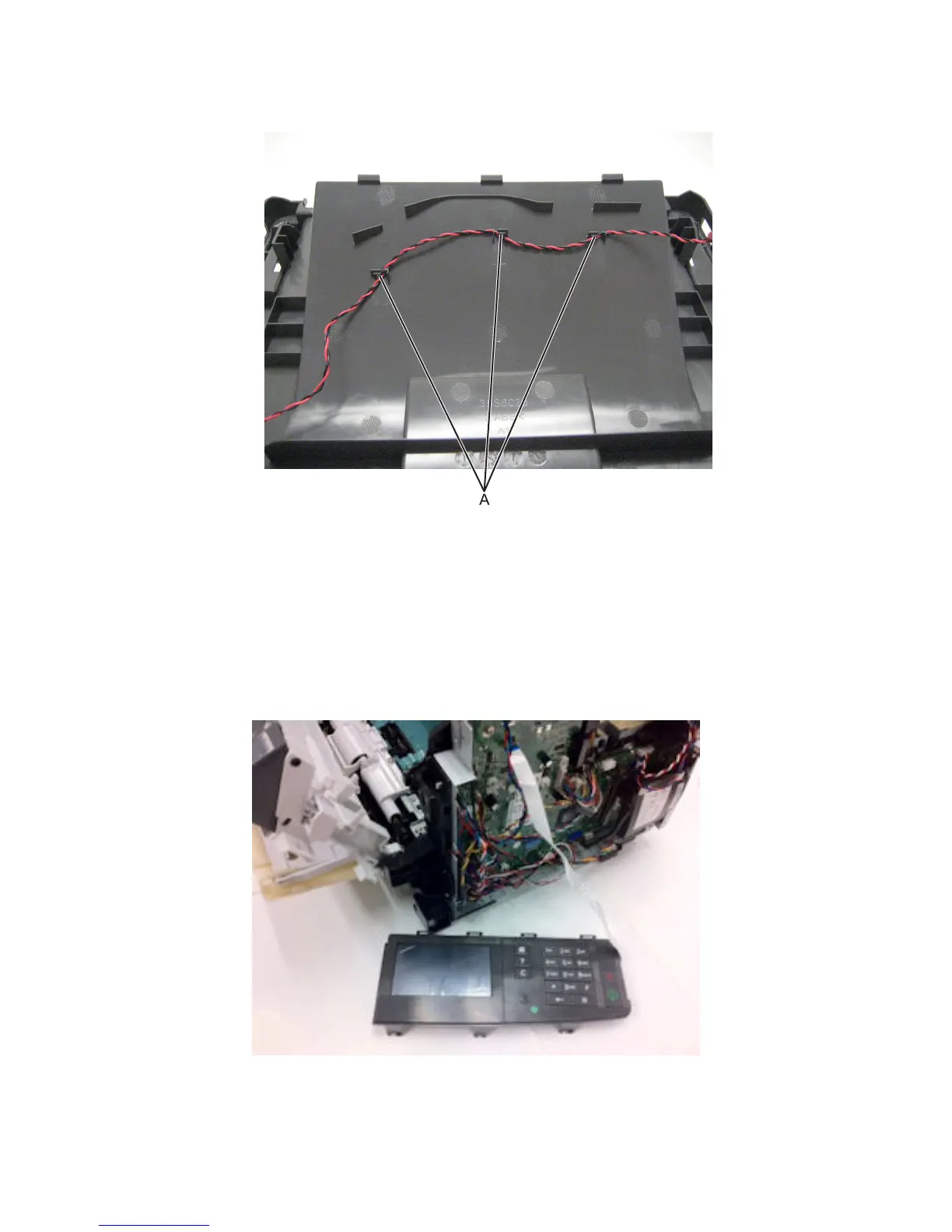

3 Release the cable from the cable holders (A), and remove.
Laser scanning unit (LSU) removal
MFP printhead adjustment
After re‑installing the current LSU or installing a new LSU, a mechanical and electronic LSU adjustment must be
performed. Before starting the LSU removal, disable the scanner in the configuration menu. After removing the scanner
assembly from the MFP, remove the control panel assembly from the scanner. Attach the control panel assembly cable
directly to JUICC on the controller board.
7016
Repair information
328
