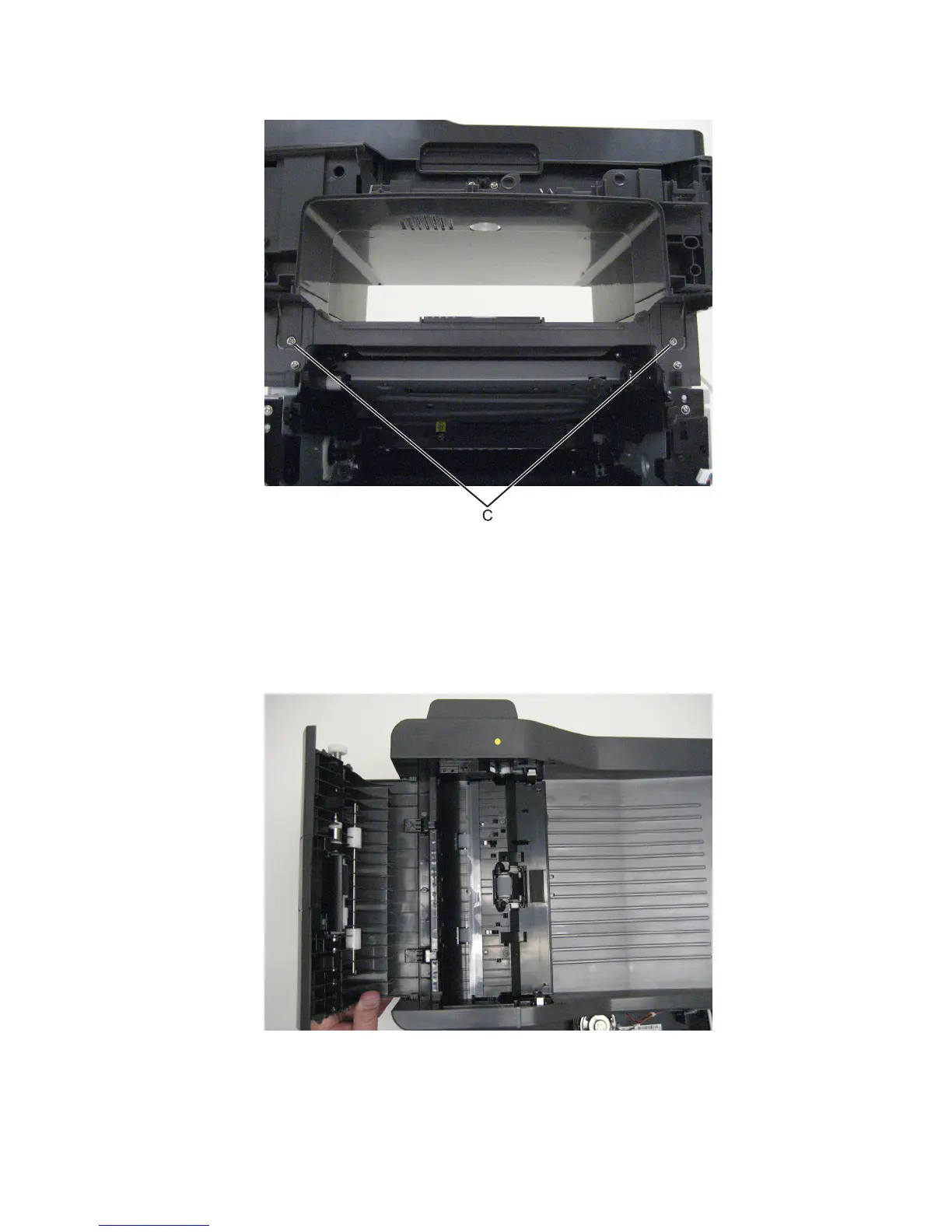

11 Remove the two screws (C) on the front of the device securing the scanner assembly to the printer frame.
12 Lift the complete scanner assembly away from the printer, and remove.
ADF top cover assembly removal
1 Open the ADF top cover.
Note: Pay attention to the original position of the top cover.
7016
Repair information
