UICC removal
1 Remove the control panel assembly. See “Control panel assembly removal” on page 273.

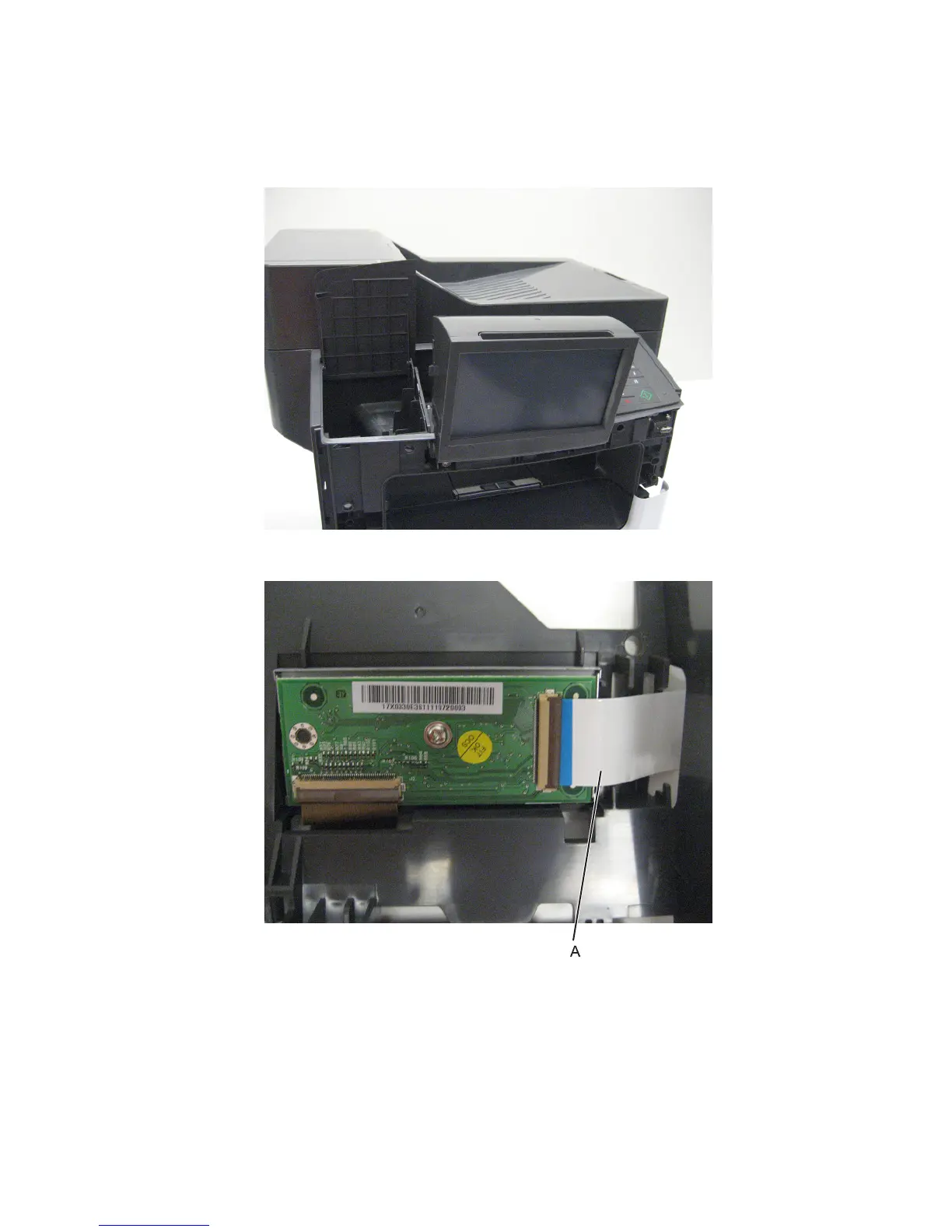

2 Position the display at the angle shown, to access the card behind it.
3 Disconnect the UICC video cable (A) from the interface card.
4 Place the control panel assembly facedown on a non-marring surface.
