3 Pry to remove the sensor retainer (B).
Note: The retainer is secured to the sensor by an adhesive.

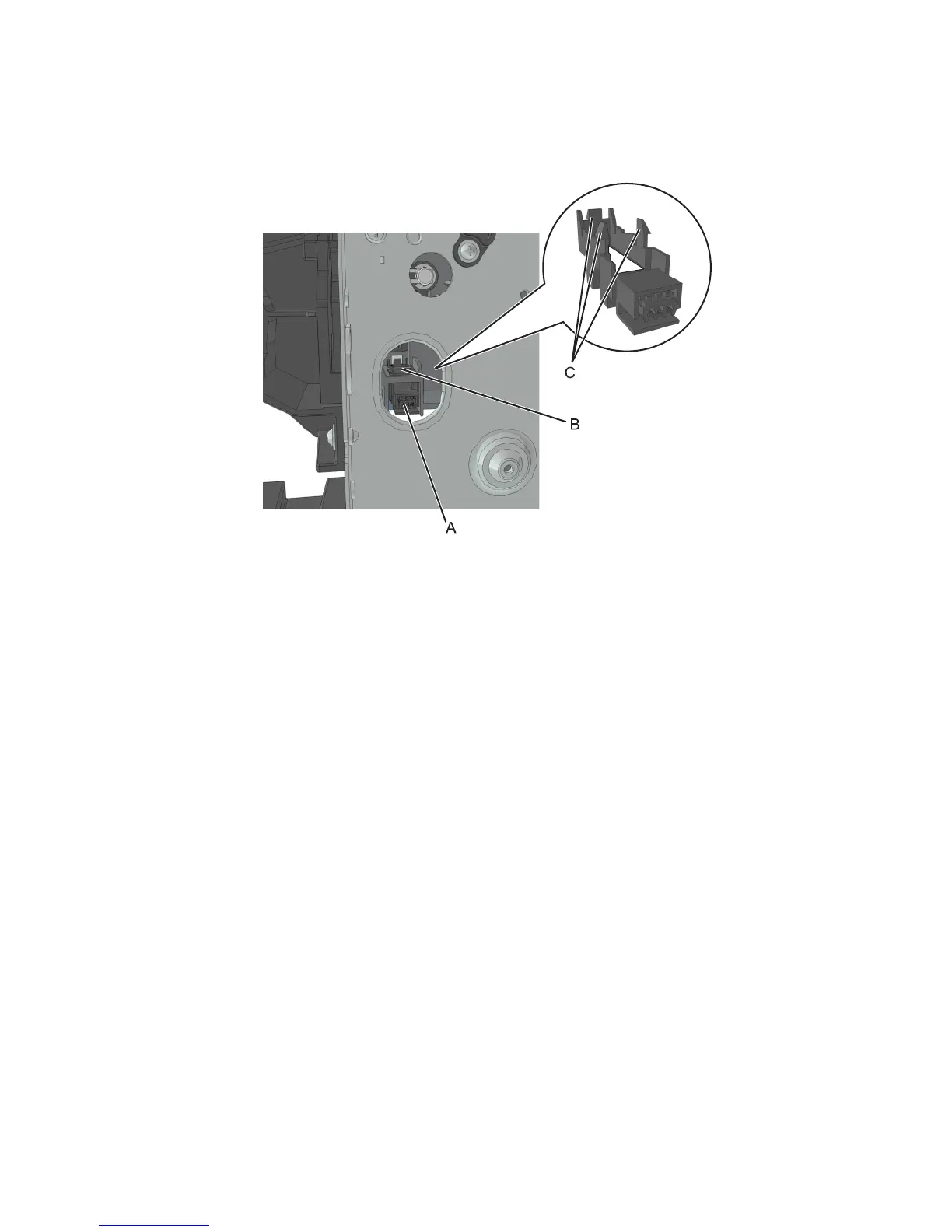

4 Release the three latches (C), and then pry to remove the tray present sensor.
Cooling fan removal
1 Remove the right cover. See “Right cover removal” on page 252.
2 Disconnect the cable JFAN1 from the controller board.
