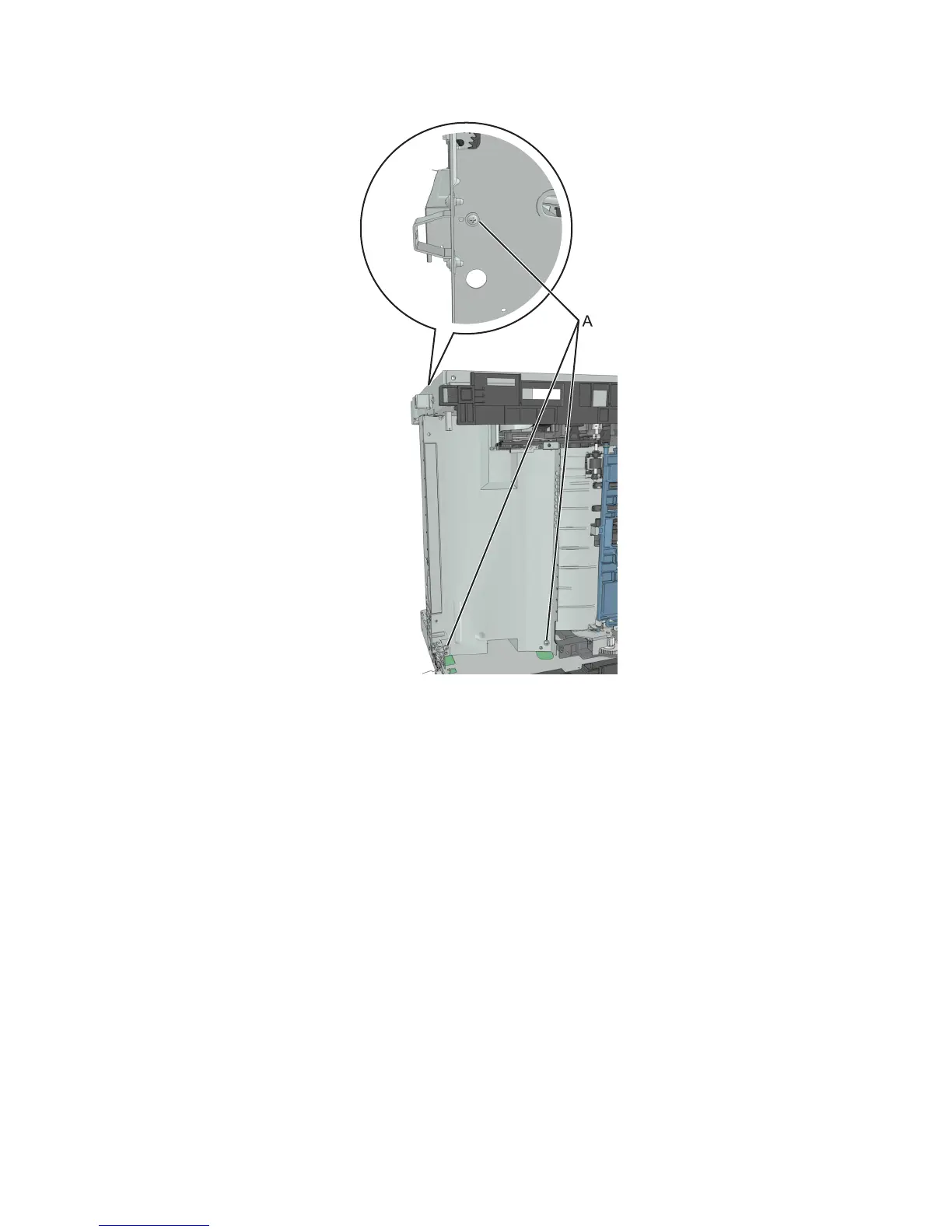

5 Remove the three screws (A), and then remove the power supply shield.
Duplex removal
1 Remove the left cover. See “Left cover removal” on page 239.
2 Remove the rear door and cover. See “Rear exit door removal” on page 317 and “Rear cover removal” on page
318.
3 Remove the power supply. See “Power supply removal” on page 298.
4 Remove the power supply shield. See “Power supply shield removal” on page 298.
5 Position the printer so that it sits on its right side.
7016
Repair information
299
