Front door sensor removal
1 Remove the front access cover. See “Front access cover removal” on page 291.

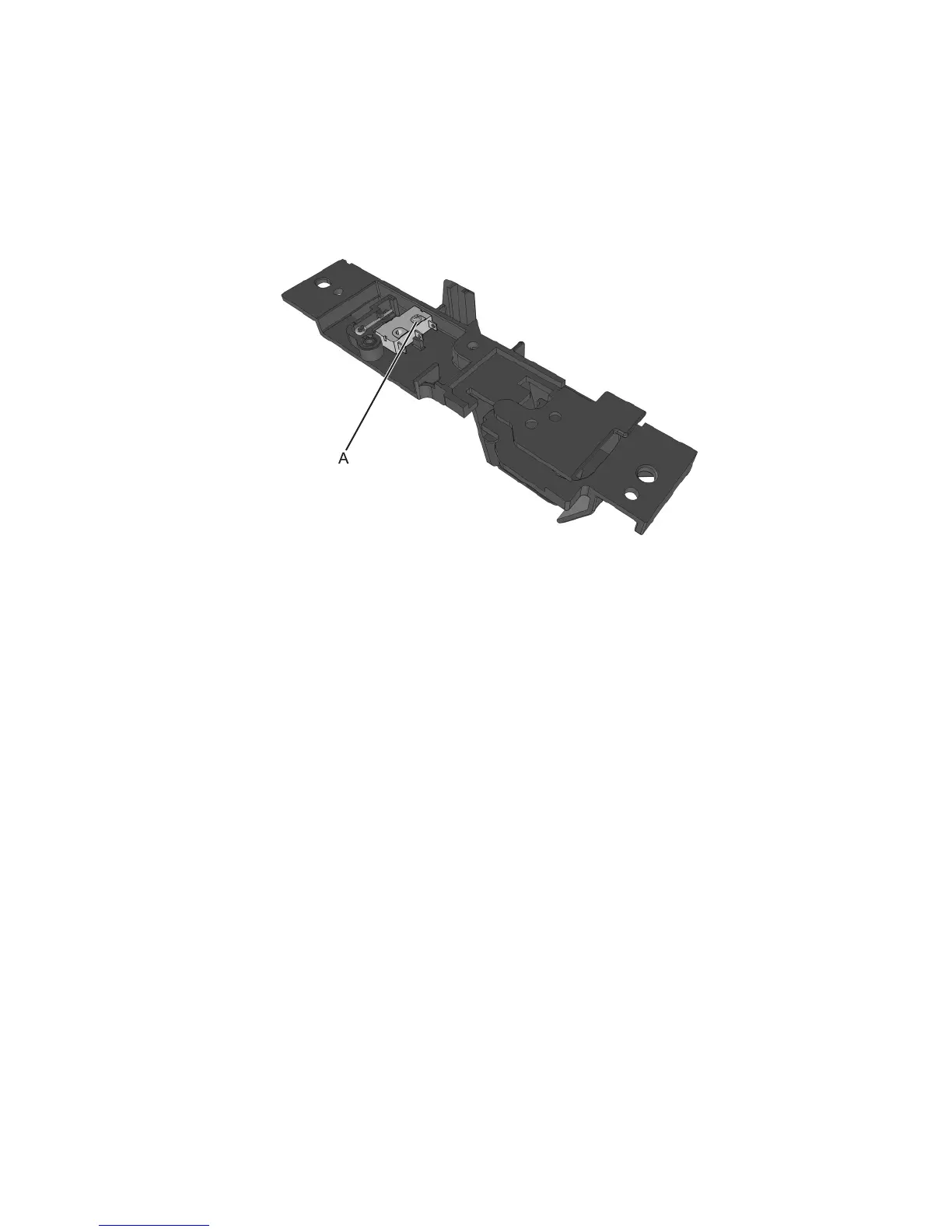

2 From under the right mount, remove the screw (A).
Note: Use a #1 Phillips screwdriver.
Front input guide removal
1 Remove the right cover. See “Right cover removal” on page 252.
2 Remove the MPF pick roller cover. See “MPF pick roller cover removal” on page 288.
3 Remove the MPF pick roller. See “MPF pick roller removal” on page 288.
4 Remove the jam access cover. See “Jam access cover removal” on page 290.
5 Remove the MPF tray. See “MPF tray removal” on page 286.
6 Disconnect cable JMPF1 from the controller board.
7016
Repair information
293
