Stapler cooling fan removal
1 Remove the stapler right cover. See “Stapler right cover removal” on page 355.
2 Remove the stapler left cover. See “Stapler left cover removal” on page 356.
3 Remove the stapler rear cover. See “Stapler rear cover removal” on page 364.
4 Remove the stapler service cover. See “Stapler service cover removal” on page 368.
5 Disconnect the cooling fan cable CN8 from the controller card.

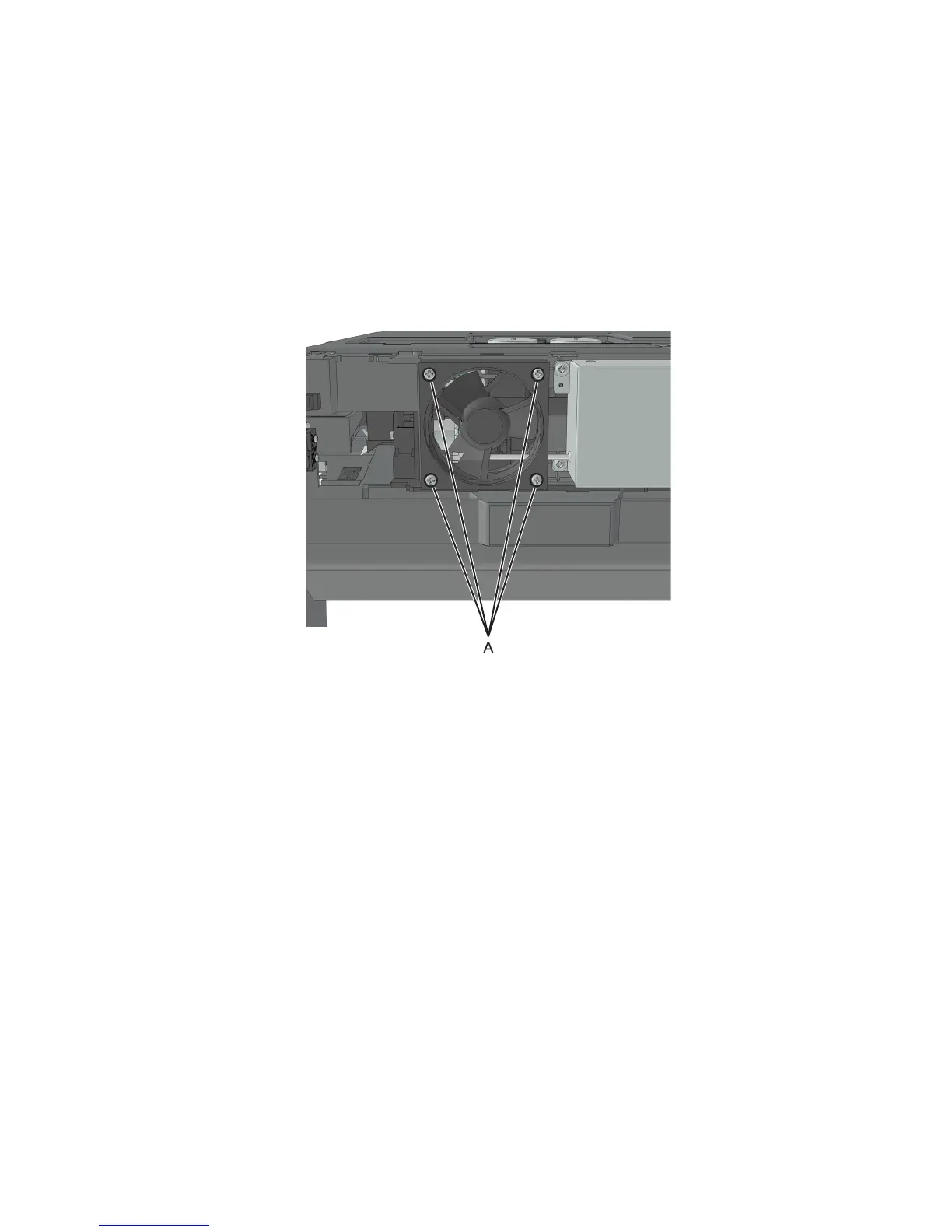

6 Remove the four screws (A) from the cooling fan.
7 Route the cable off the stapler, and remove the cooling fan.
Note: Pay attention to the original routing of the cable.
Stapler power supply unit removal
1 Remove the stapler right cover. See “Stapler right cover removal” on page 355.
2 Remove the stapler left cover. See “Stapler left cover removal” on page 356.
3 Remove the stapler rear cover. See “Stapler rear cover removal” on page 364.
4 Remove the stapler cooling fan. See “Stapler cooling fan removal” on page 372.
5 Remove the stapler service cover.
6 Disconnect the power supply cable CN5 from the controller card.
7016
Repair information
372
