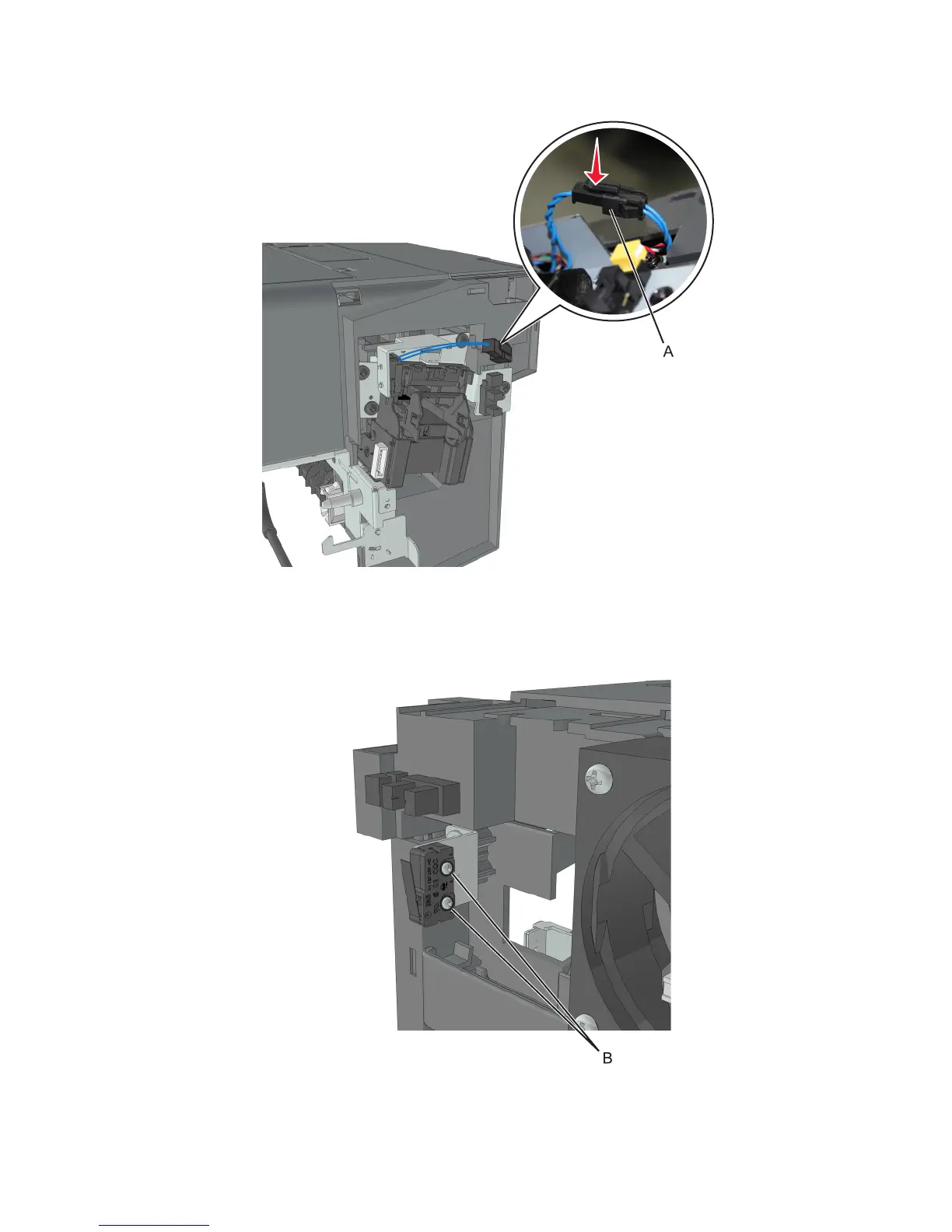

4 Disconnect the sensor cable (A).
5 Remove the stapler left cover. See “Stapler left cover removal” on page 356.
6 Remove the stapler rear cover. See “Stapler rear cover removal” on page 364.
7 Remove the two screws (B) using a #1 Phillips screwdriver, then remove the limit switch.
7016
Repair information
371
