Lexmark MX610 - ACM Assembly Removal

ACM assembly removal

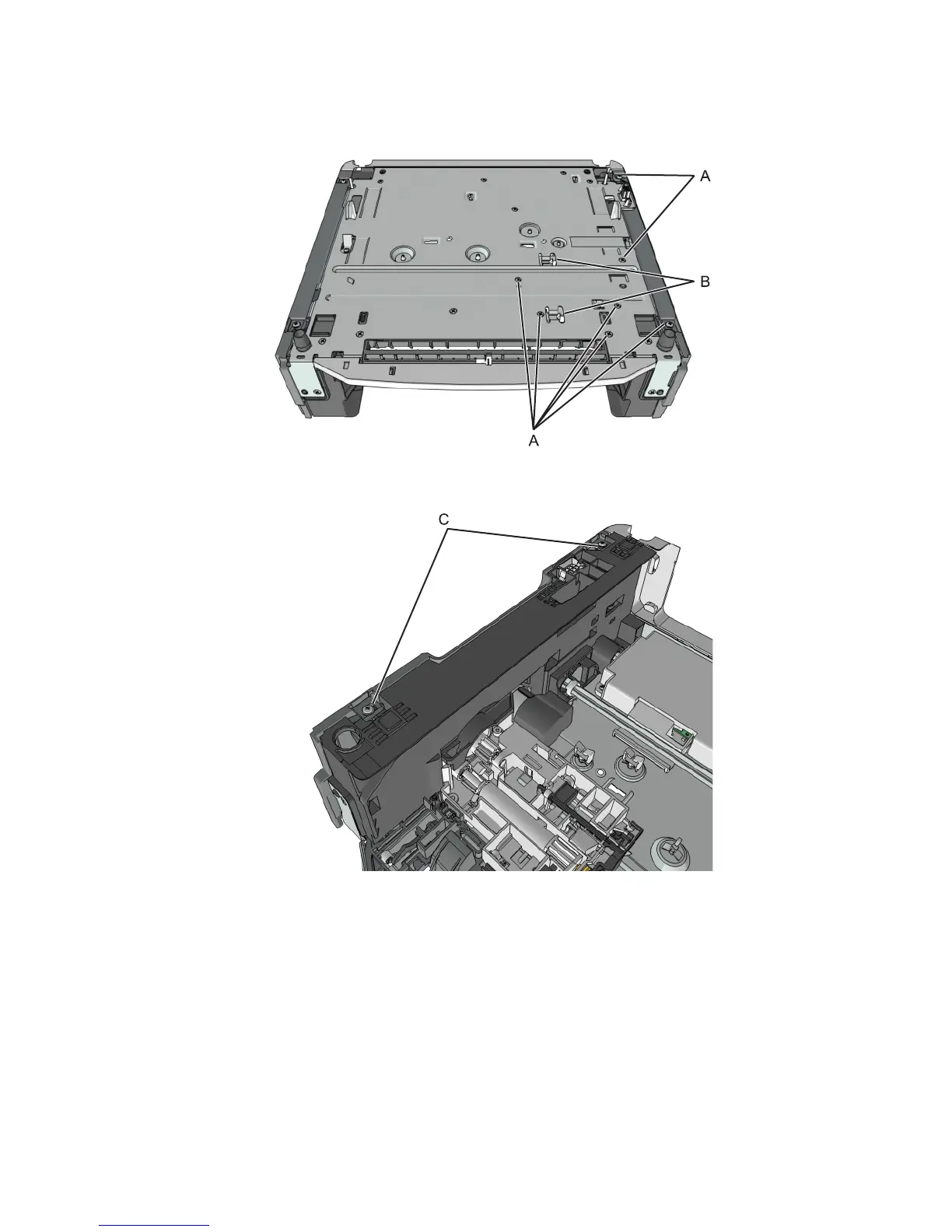

1 Remove the seven screws (A), and release the two latches (B) from the top of the drawer.
2 Remove the two screws (C), and then release the two latches under the screws.
7016
Repair information
349
