Lexmark MX610 - Index Sensor Removal; Media Present Sensor Removal

Index sensor removal
1 Remove the left cover. See “Left cover removal” on page 239.
2 Remove the right cover. See “Right cover removal” on page 252.
3 Remove the rear door and cover. See “Rear exit door removal” on page 317 and “Rear cover removal” on page
318.
4 Remove the power supply. See “Power supply removal” on page 298.
5 Remove the power supply shield. See “Power supply shield removal” on page 298.
6 Remove the duplex. See “Duplex removal” on page 299.
7 Disconnect the cable JINDEX1 from the controller board.

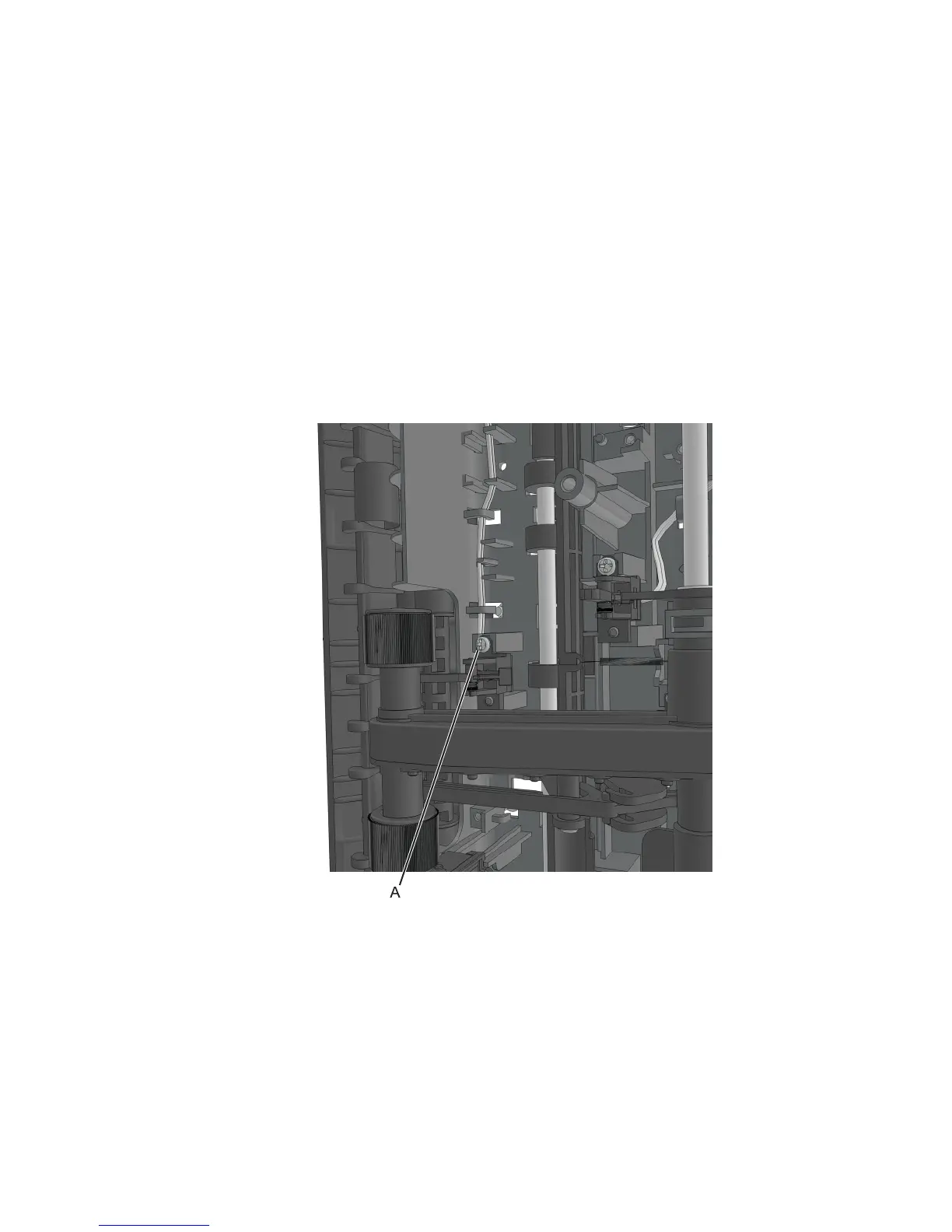

8 Remove the screw (A).
9 Route off the cable, and then remove the index sensor.
Media present sensor removal
1 Remove the left cover. See “Left cover removal” on page 239.
2 Remove the rear door and cover. See “Rear exit door removal” on page 317 and “Rear cover removal” on page
318.
3 Remove the power supply. See “Power supply removal” on page 298.
4 Remove the power supply shield. See “Power supply shield removal” on page 298.
