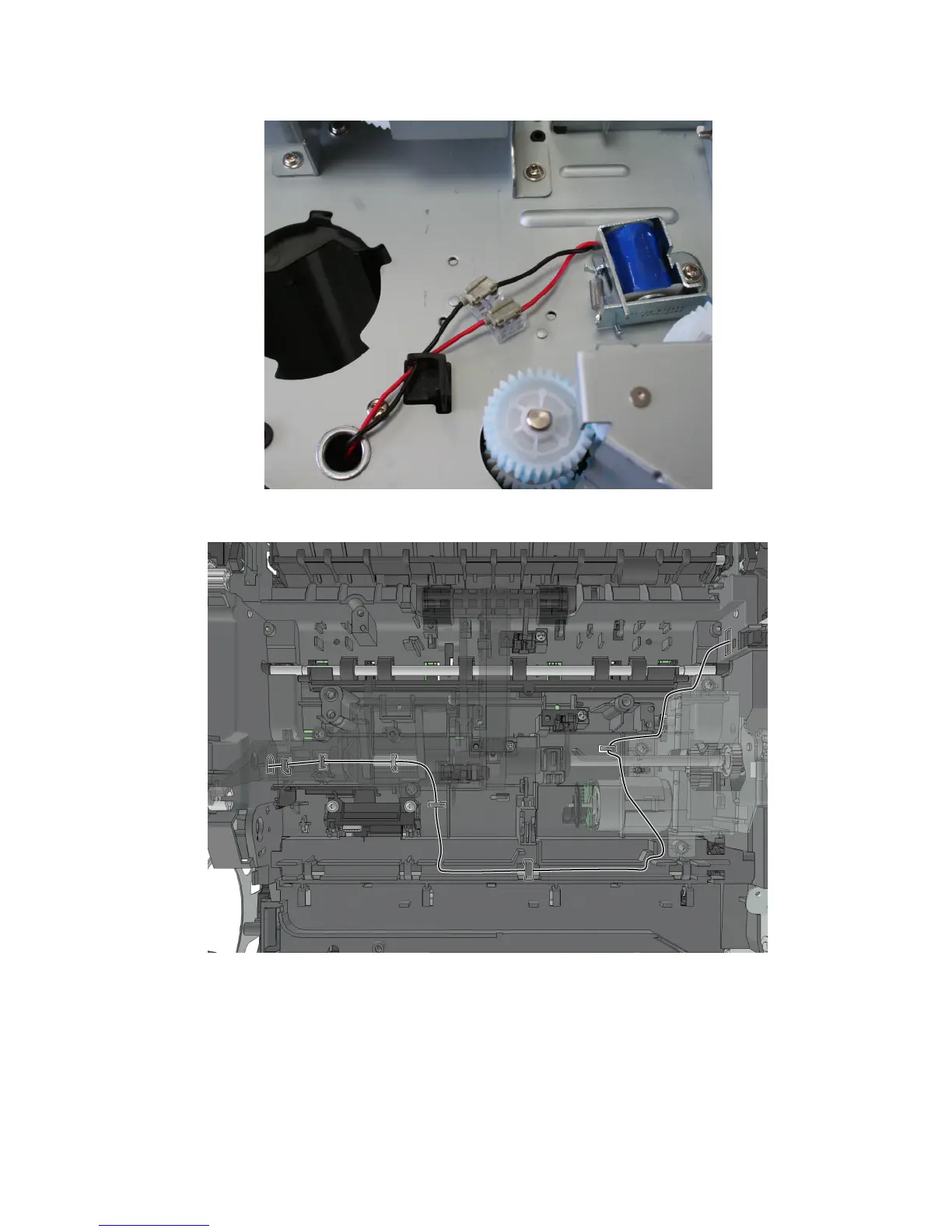

c Insert the cable into the hole (B).
d Route the cable using the new path, and secure it with a cable tie (C).
MPF gearbox removal
1 Remove the left cover. See “Left cover removal” on page 239.
2 Remove the main drive gearbox. See “Main drive gearbox removal” on page 241.
3 Remove the front access cover. See “Front access cover removal” on page 291.
7016
Repair information
245
