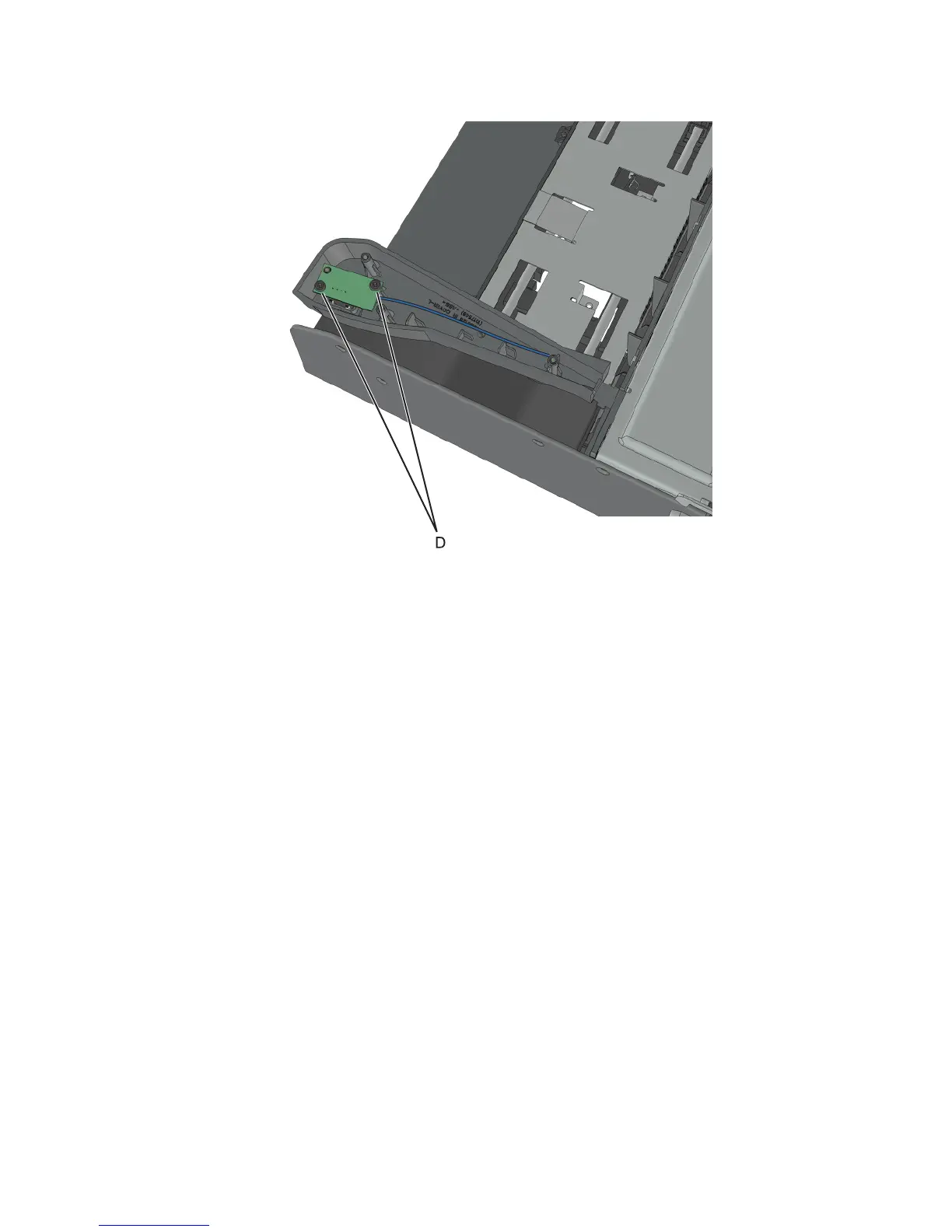

10 Remove the two screws (D) securing the sensor.
11 Route the sensor cable off the stapler, then remove the sensor.
Note: Pay attention to the original routing of the cables.
Sensor (stapler bin full send) removal
1 Remove the right cover. See “Stapler right cover removal” on page 355.
2 Remove the left cover. See “Stapler left cover removal” on page 356.
3 Remove the rear cover. See “Stapler rear cover removal” on page 364.
4 Remove the stapler service cover. See “Stapler service cover removal” on page 368.
5 Disconnect the sensor cable CN12 from the controller card.
7016
Repair information
381
