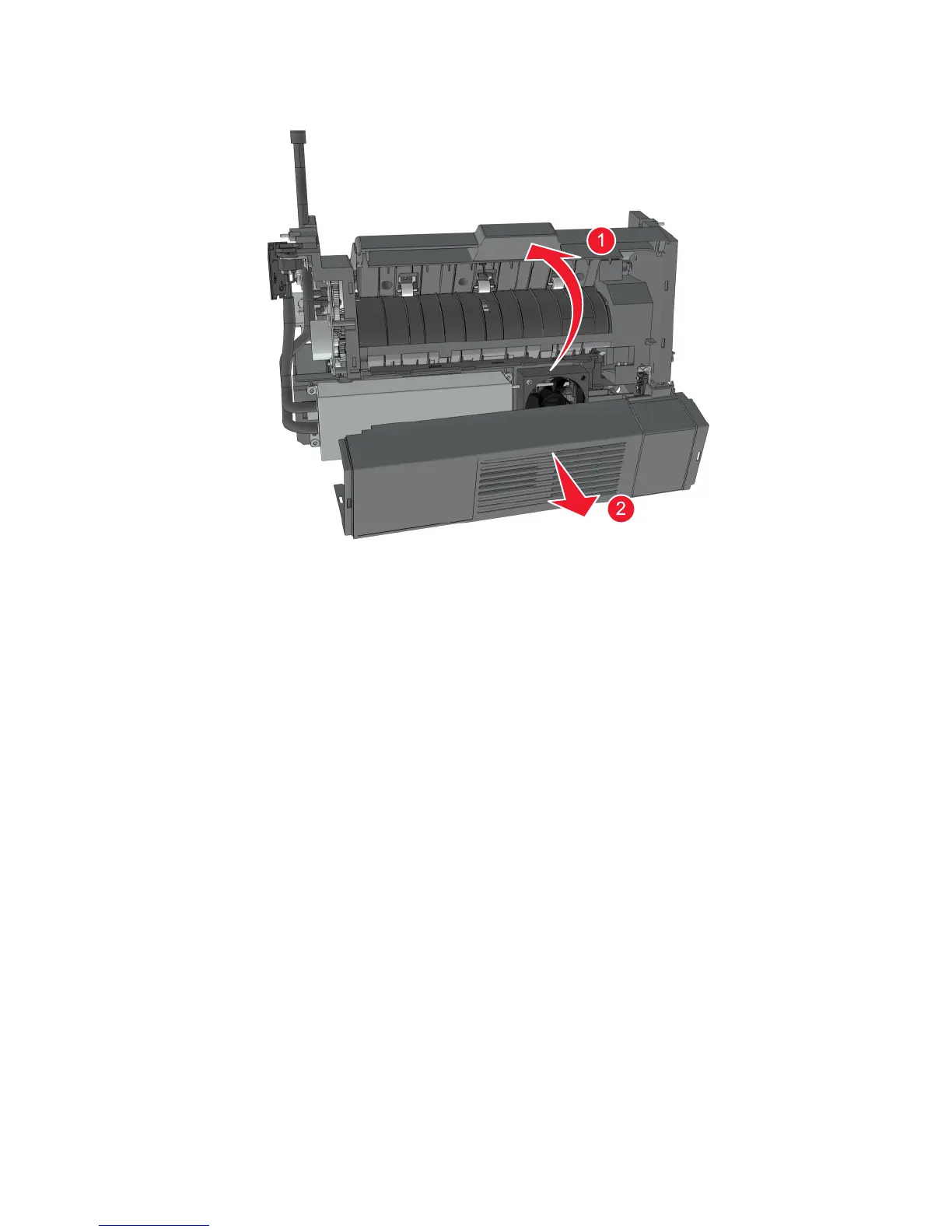

3 Lift the media access door (1), then pull the rear cover (2), and remove.
Sensor (stapler rear cover) removal
1 Remove the stapler right cover. See “Stapler right cover removal” on page 355.
2 Remove the stapler left cover. See “Stapler left cover removal” on page 356.
3 Remove the stapler rear cover. See “Stapler rear cover removal” on page 364.
7016
Repair information
