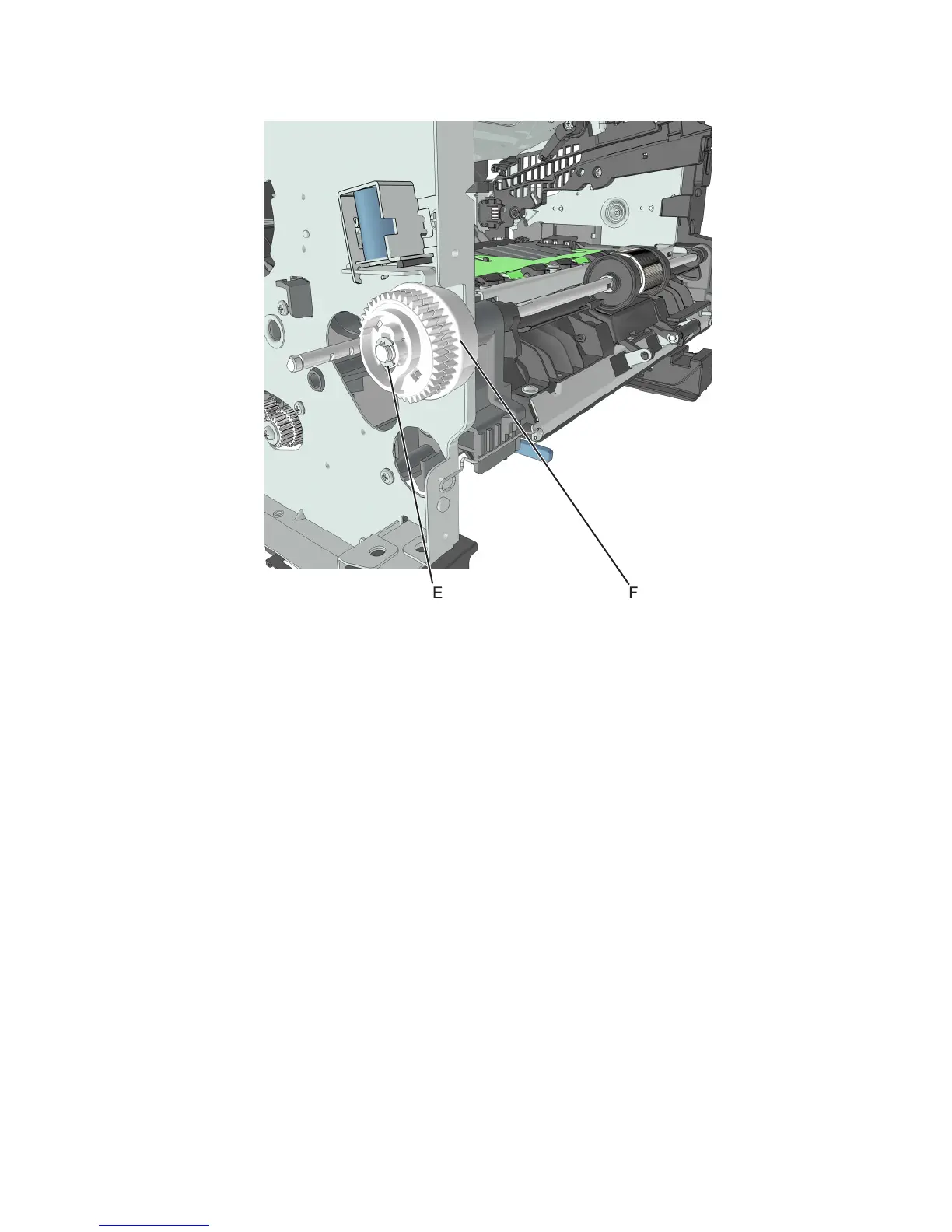

8 Remove the E-clip (E), and then remove the MPF sector gear (F).
Reverse solenoid removal
1 Remove the right cover. See “Right cover removal” on page 252.
2 Remove the left cover. See “Left cover removal” on page 239.
3 Remove the rear door and cover. See “Rear exit door removal” on page 317 and “Rear cover removal” on page
318.
4 Remove the scanner assembly. See “Scanner assembly removal” on page 336.
5 Remove the top cover. See “Top cover removal” on page 324.
6 Remove the cooling fan. See “Cooling fan removal” on page 256.
7 Disconnect cable JDSOL1 from the controller board.
7016
Repair information
248
