Lexmark MX610 - Stapler Paddle Motor Removal; Stapler Rear Cover Removal

Stapler paddle motor removal
1 Remove the stapler left cover. See “Stapler left cover removal” on page 356.

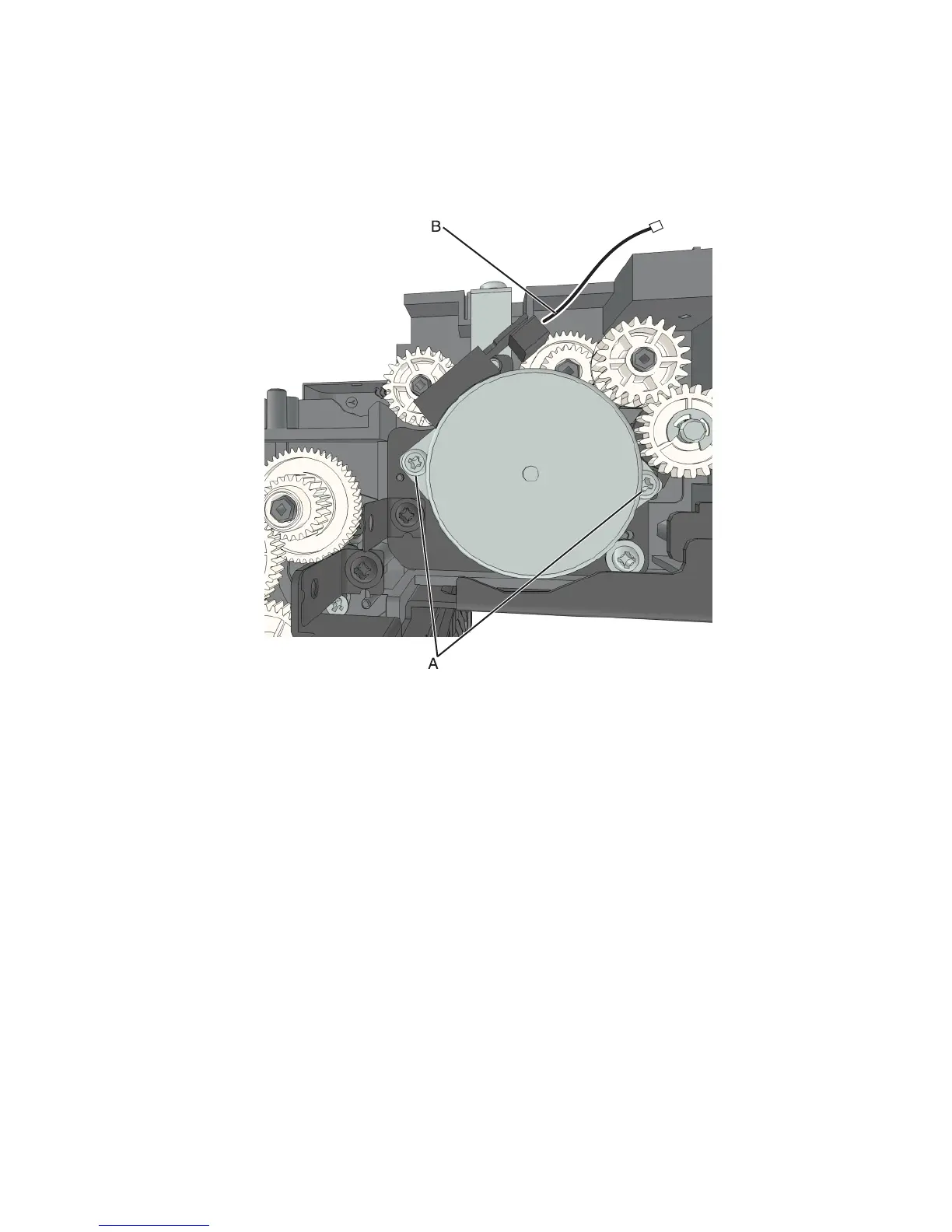

2 Remove the two screws (A) from the paddle motor and disconnect the motor cable (B).
3 Remove the motor.
Stapler rear cover removal
1 Remove the left cover. See “Stapler left cover removal” on page 356.
2 Remove the right cover. See “Stapler right cover removal” on page 355.
