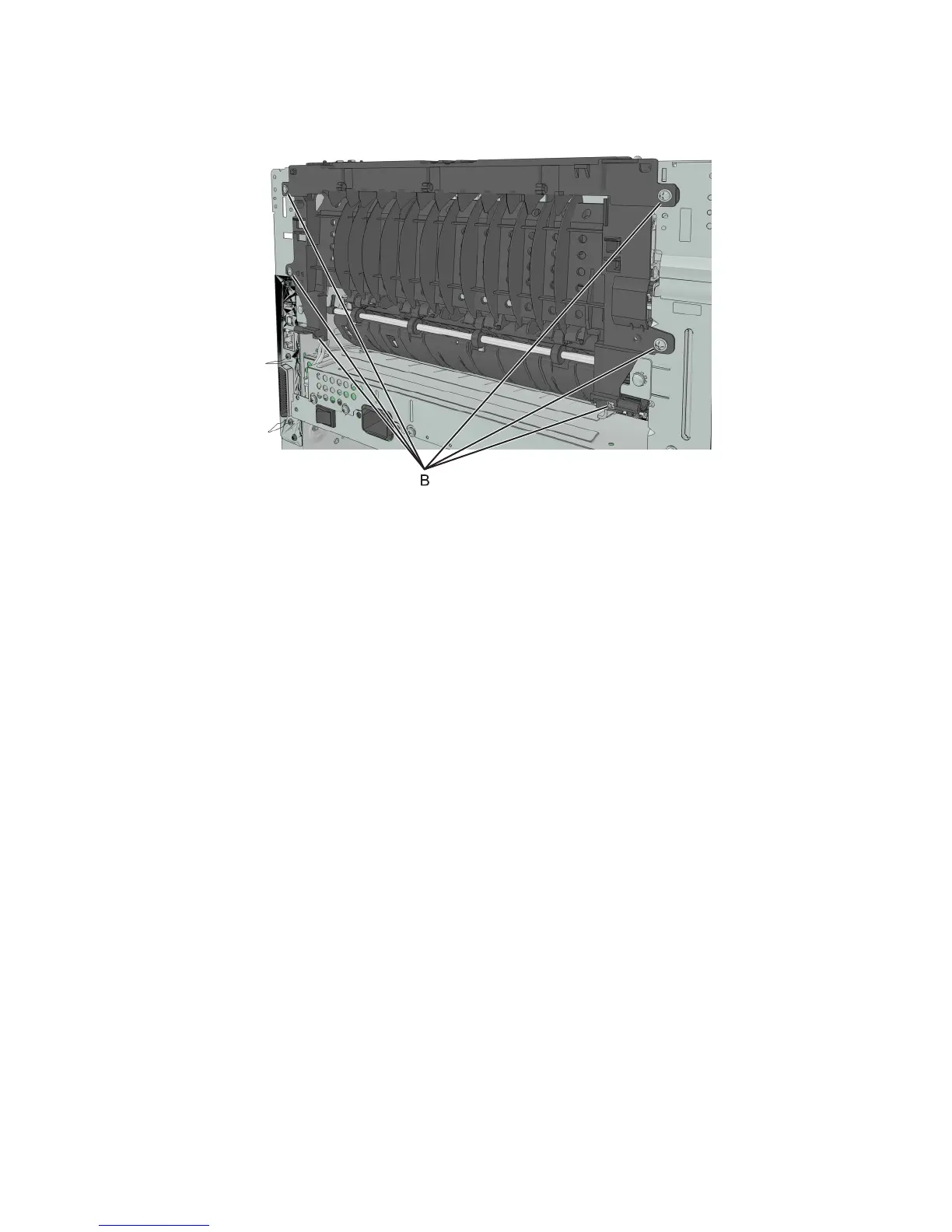

9 Remove the six screws (B) securing the redrive assembly.
Fuser removal
1 Remove the right cover. See “Right cover removal” on page 252.
2 Remove the rear door and cover. See “Rear exit door removal” on page 317 and “Rear cover removal” on page
318.
3 Remove the redrive assembly. See “Redrive assembly removal” on page 318.
4 Disconnect the cable JEXIT1 from the controller board.
5 Disconnect the two cables (A).
7016
Repair information
320
