Lexmark MX610 - Page 292

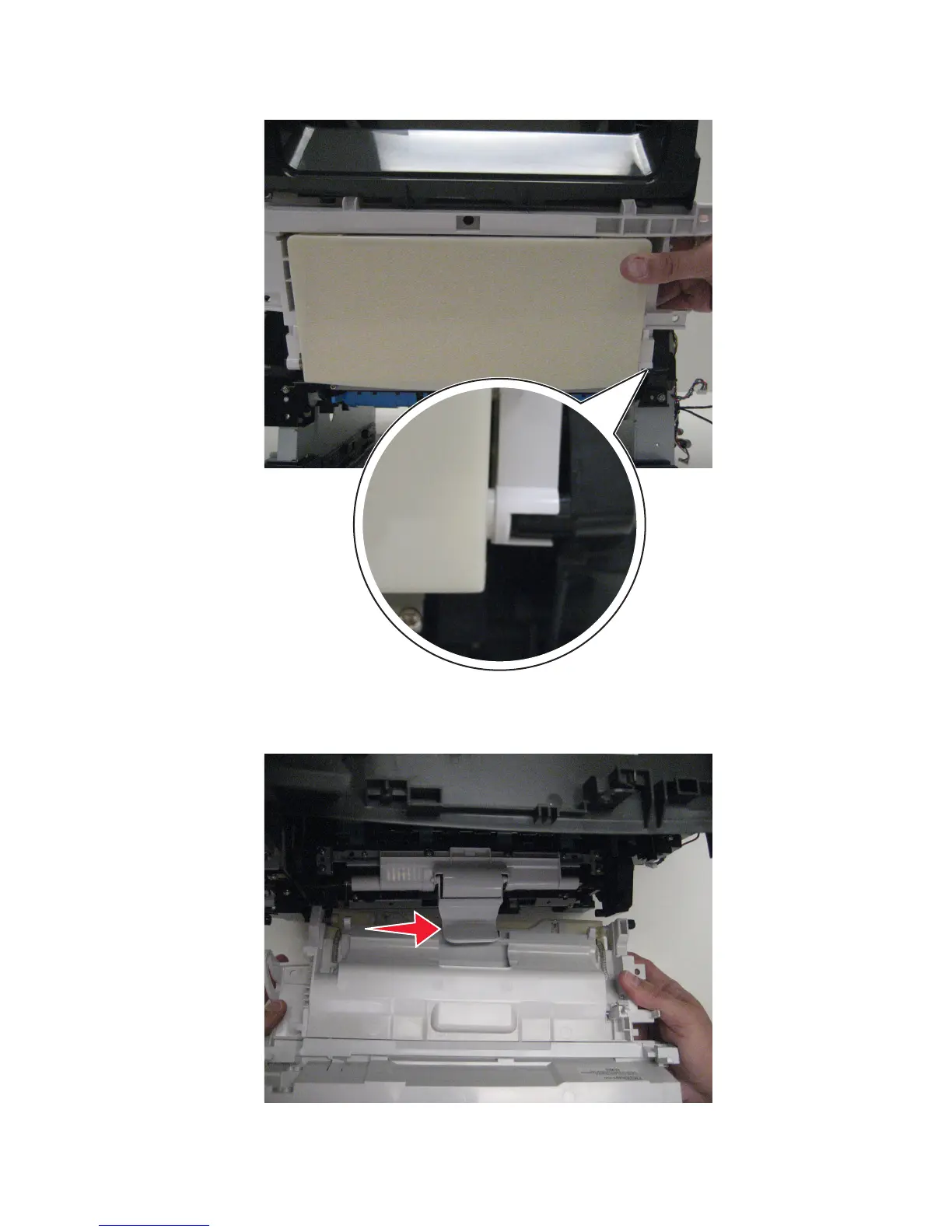

3 Rotate the front access cover to a position that aligns the gap on the cover with the right hinge.
4 Release the right hinge off the pivot by lifting up on the right side of the front access cover.
5 Slide the front access cover to the right, removing it from the print engine.
7016
Repair information
292
