7 Disconnect the following cables from the RIP board: ADF ground, ADF cable (JADF1), CCD cable (J30), control panel
cable (JUICC1), paper length sensor cable (JPLEN1), home sensor cable (JHOME1), speaker cable (JAUD1), and flatbed
motor cable (JFBM1).
8 Disconnect the control panel USB cable and the MFP wireless cable from the controller board.

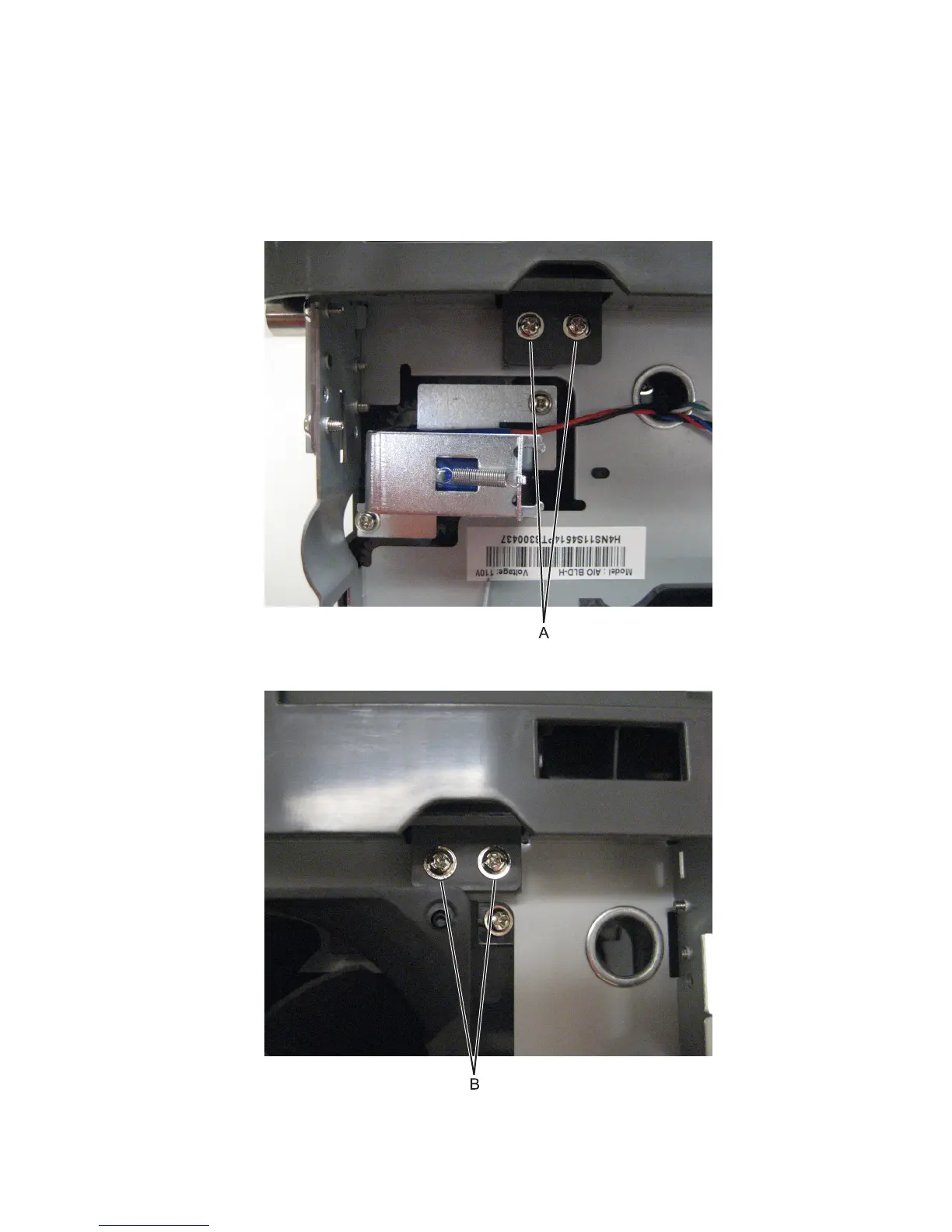

9 On the rear side of the printer, remove the two screws (A) securing the right side of the scanner assembly to the
printer frame.
10 Remove the two screws (B) securing the left side of the scanner assembly to the printer frame.
