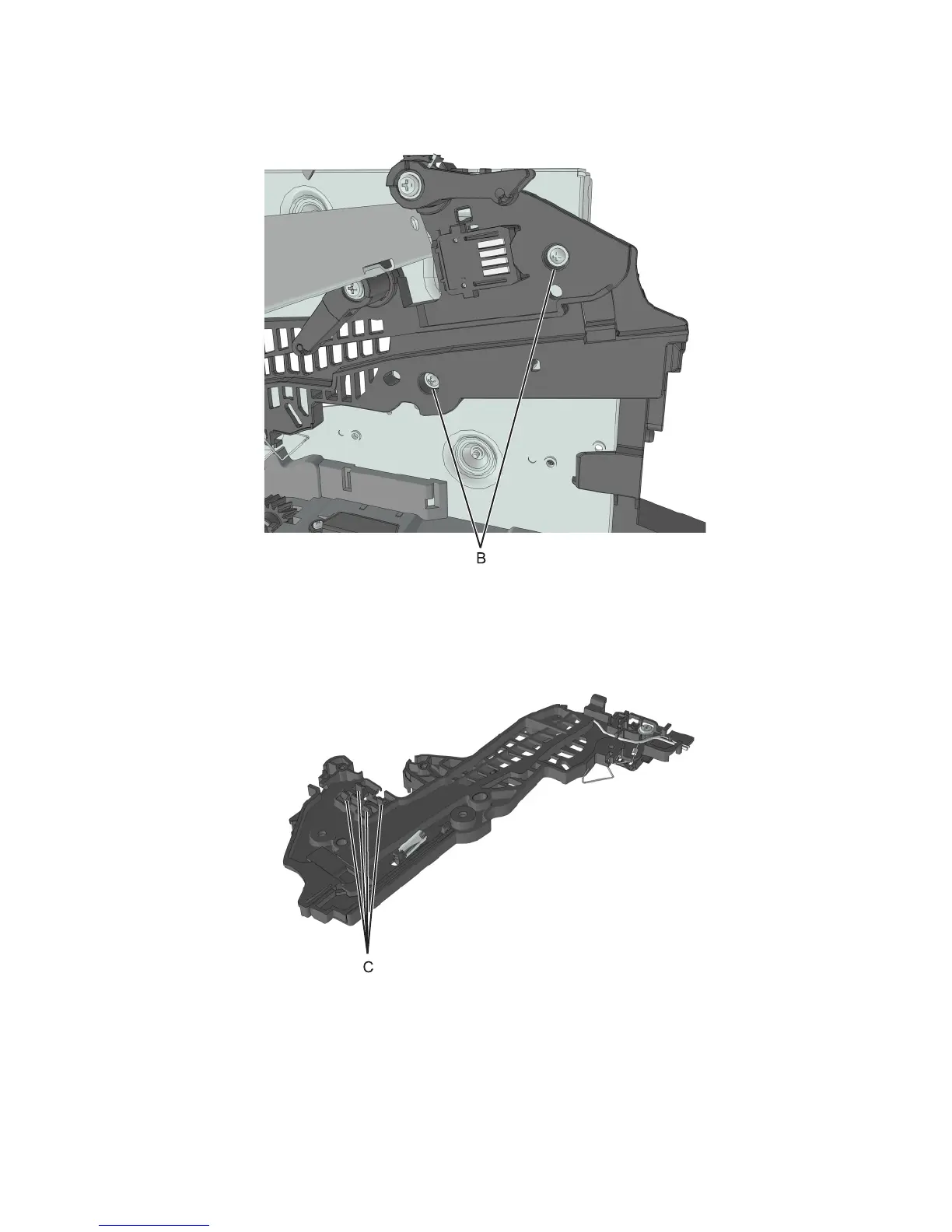

5 Remove the two screws (B), and then detach the right cartridge guide.
6 From behind the right cartridge guide, release the 4 latches (C) to detach the toner cartridge smart chip contact.
Note: Pay attention to the original position of the spring and the actuators.
