Lexmark MX610 - Page 275

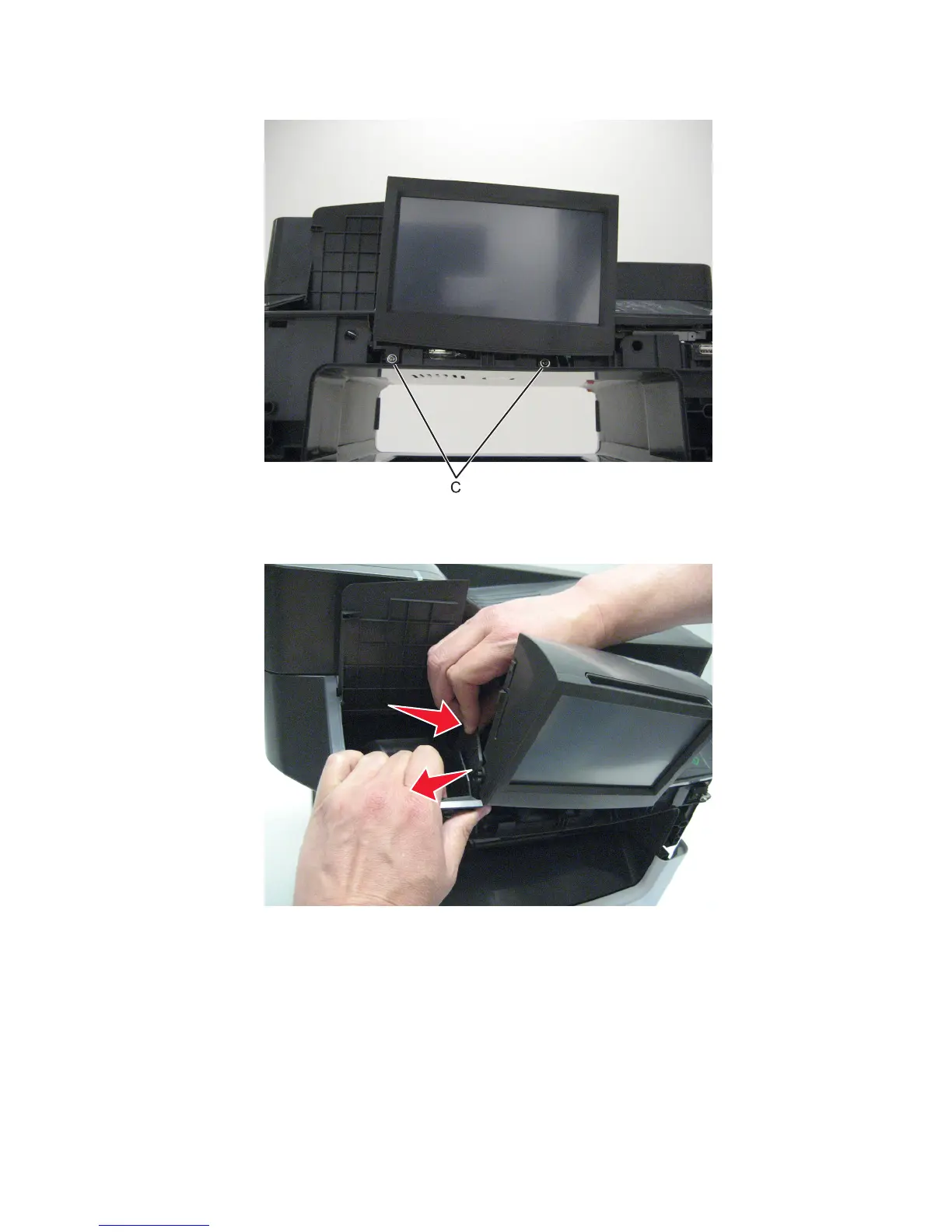

6 Remove the two screws (C) securing the control panel assembly to the scanner assembly.
7 Gently flex the wireless chamber wall to the left to release and lift the control panel assembly upward to remove
it from the scanner assembly.
7016
Repair information
275
