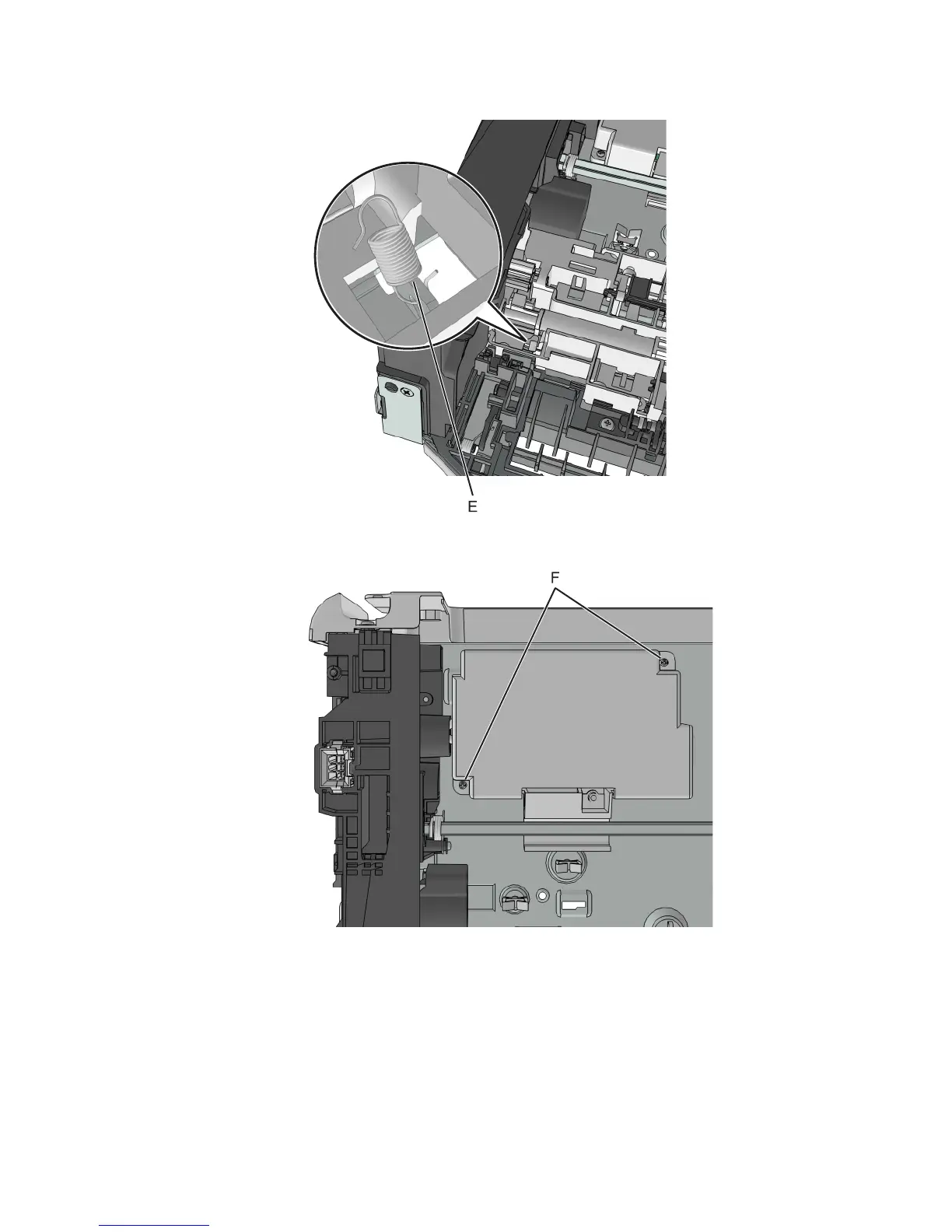

5 Disconnect the spring (E).
6 Remove the two screws (F), and then remove the controller card cover.
7 Disconnect the cable J11 from the controller card.
8 Route the cable off the option, and then remove the ACM assembly.
7016
Repair information
351
