Malfunctions in driving mode
8.7 Fuses on the carrier
8 - 50 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

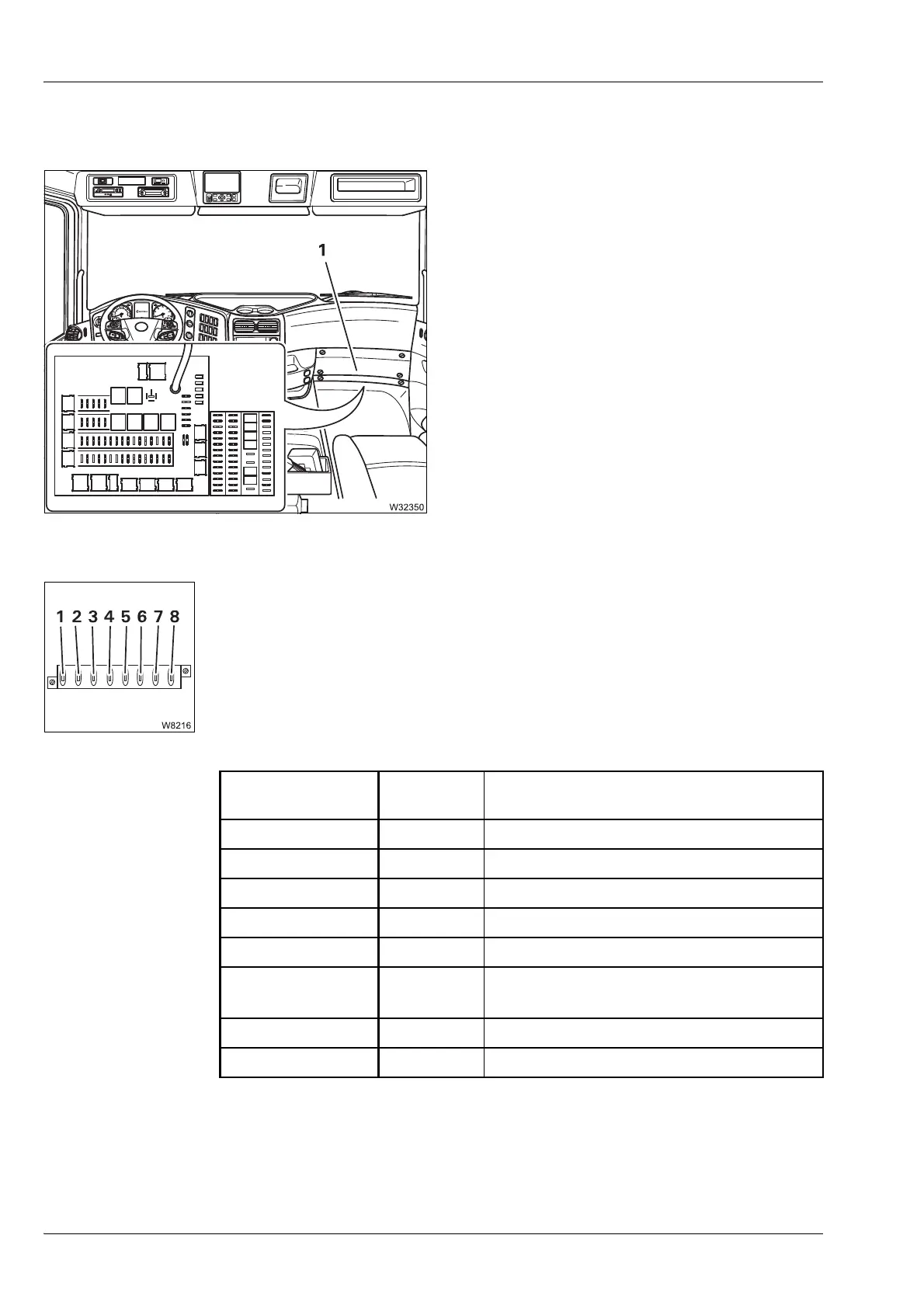

8.7.1 Fuses in the driver's cab
The driver's cab contains fuse groups F1 to F6.
• Remove the cover (1).
The following tables show the designations of
the individual fuses, including their amperage
and functions.
The designations 1 to 8 in the tables correspond to their order from left to
right (fuse 1 is always the left fuse).
• Observe the instructions for fuse changes; à p. 8 - 49.
Designation
Amper-
age (A)
Function
F1/1 3 Ignition lock
F1/2 15 Control unit UB 2 CCM 11
F1/3 15 Control unit UB 2 CCM 11
F1/4 15 Permanent positive voltage (terminal 30)
F1/5 5 Engine/transmission diagnostics plug
F1/6 10
Electronic gear system control
Transmission operating elements
F1/7 10 Engine electronic control system
F1/8 15 Engine electronic control system
