Operating elements for crane operation
9.3 Short description of the operating elements – driving from the crane cab
9 - 164 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx
Control panels
H
The information in this section is based on the steering direction setting
Steering wheel.

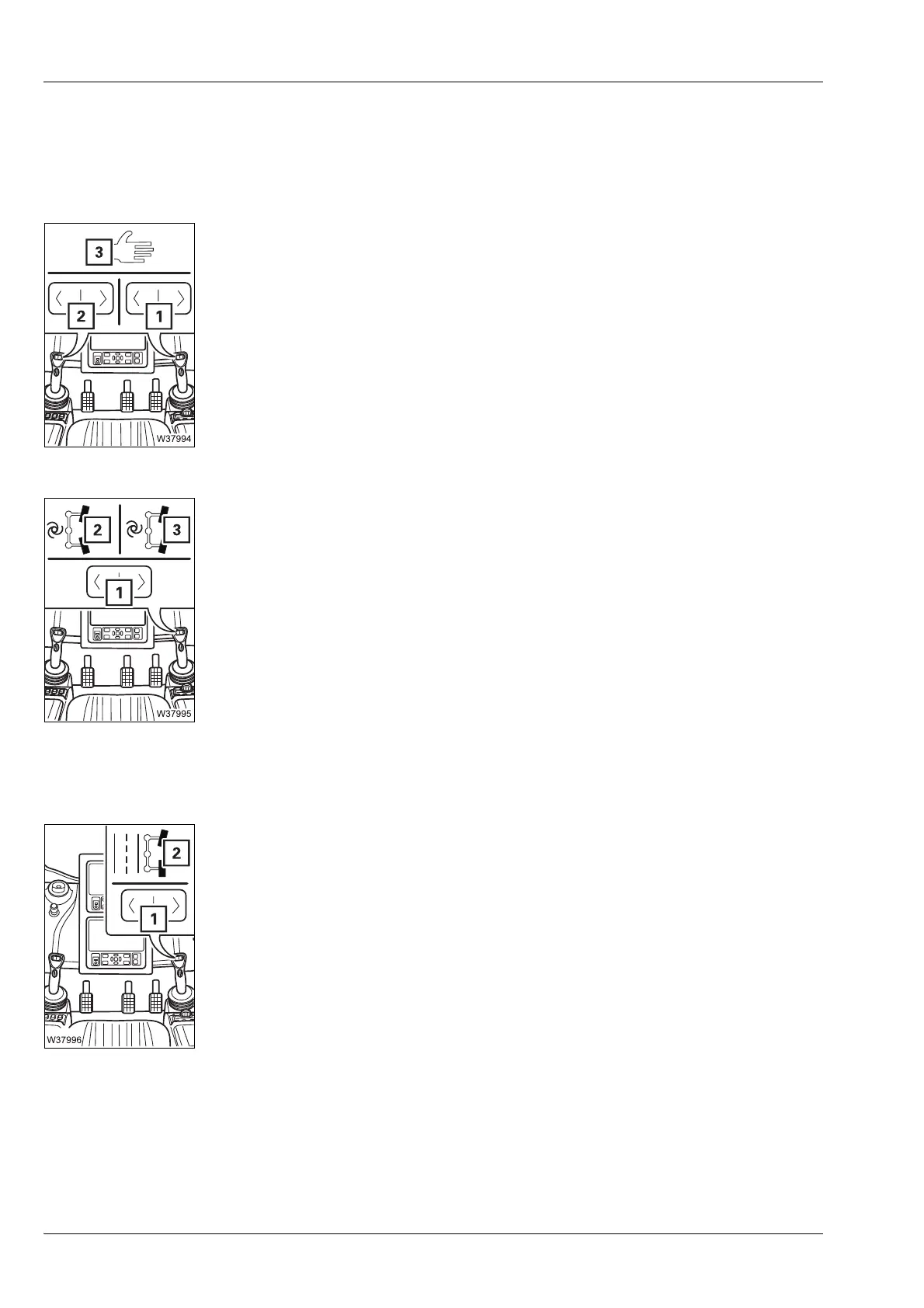

Steering with separate steering – manual
The (3) symbol is displayed.
1. Steer 1st and 2nd axle lines with the button (1).
Press and hold button (2)
Steering with separate steering – automatic driving around corners/crab
travel mode
The symbol (2) or (3) is displayed.
Press and hold button (1)
Steering in normal steering mode
The (2) symbol is displayed.
1. Steer 1st and 2nd axle lines with the button (1).
– To the left: 3. and 4th axle lines – turn to the left
– To the right: 3. and 4th axle lines – turn to the right
à p. 13 - 24
– To the left: 1. and 2nd axle lines – turn to the left
3. and 4th axle lines – the matching steering angle for
steering mode
– To the right: 1. and 2nd axle lines – turn to the right
3. and 4th axle lines – the matching steering angle for
steering mode
à p. 13 - 23
–To the left: 1. and 2nd axle lines – turn to the left
3. and 4th axle lines – the matching steering angle for
steering mode
– To the right: 1. and 2nd axle lines – turn to the right
3. and 4th axle lines – the matching steering angle for
steering mode
à p. 13 - 25
