Mercury 200 OptiMax Jet Drive

Charging and Starting System
Page 2B-18 90-8M0050731 MAY 2011

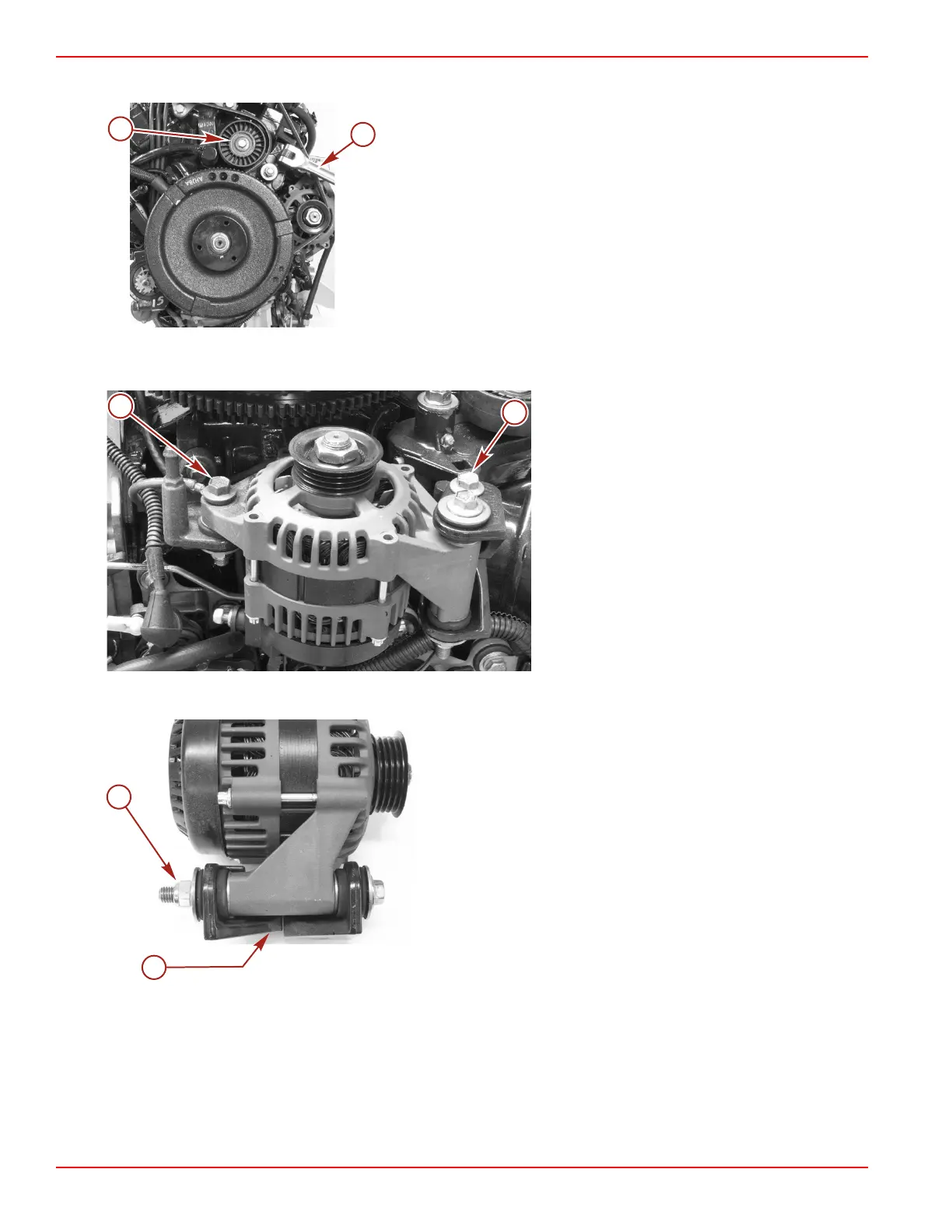

4. Use a breaker bar to relieve the tension on the alternator belt and remove the alternator belt.
a - Belt tensioner assembly
b - Breaker bar
5. Remove the M10 x 55 bolt and nut securing the alternator ground wire and alternator to the cylinder block.
6. Remove the M10 x 100 bolt securing the alternator to the cylinder block.
a - Bolt (M10 x 55) and nut
b - Bolt (M10 x 100)
7. Remove the M10 x 120 bolt and nut securing the isolation brackets to the alternator.
a - Bolt (M10 x 120) and nut
b - Isolation brackets
a
b
32050
a
b
32051
a
b
32054
