Mercury 200 OptiMax Jet Drive Service Manual

Direct Fuel Injection
Page 3B-24 90-8M0050731 MAY 2011

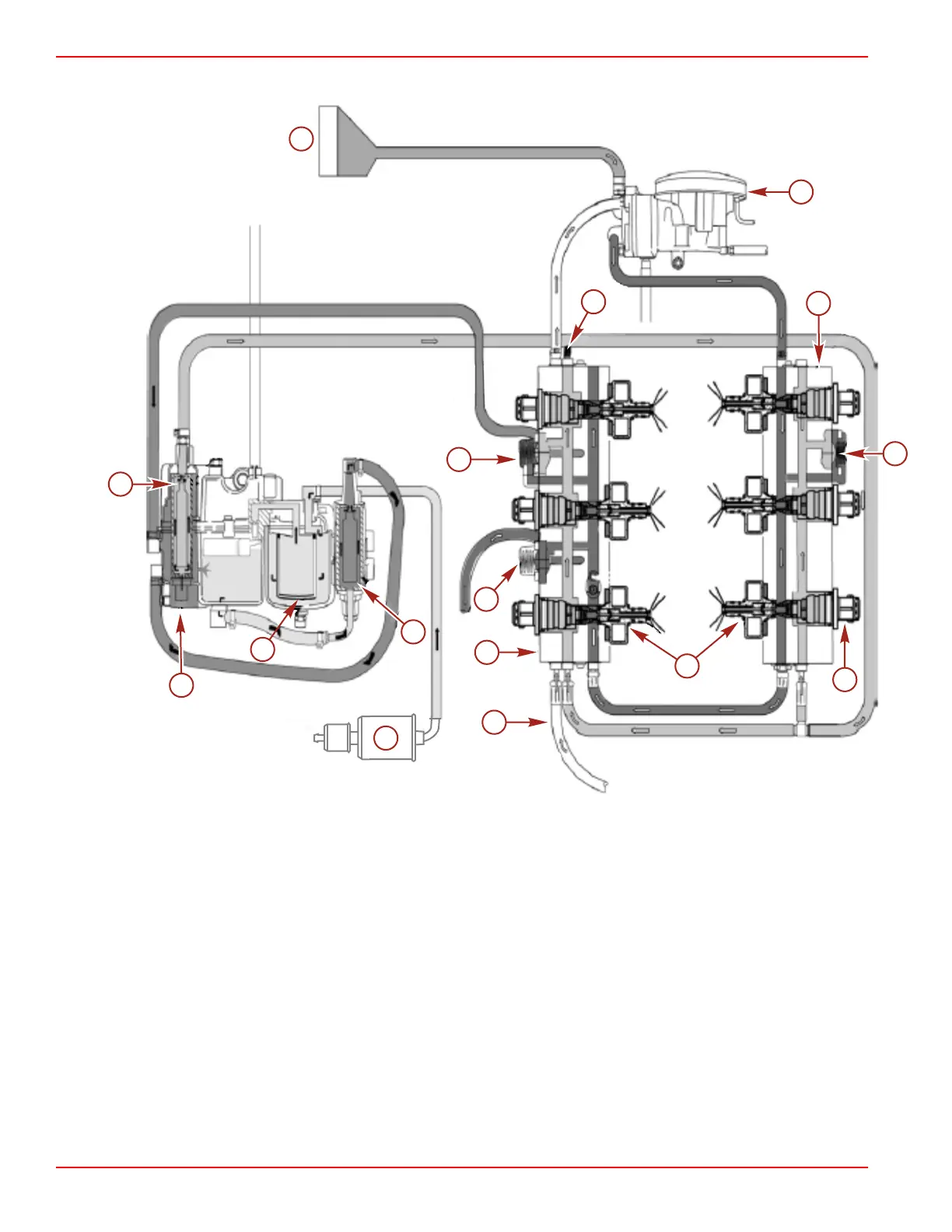

200 OptiMax Jet Drive Air/Fuel Schematic
a - Air intake
b - Air compressor
c - Fuel system test valve
d - Starboard fuel rail
e - Tracker valve
f - Fuel injector (6)
g - Direct injector
h - Water into fuel rail
i - Port fuel rail
j - Air pressure regulator
k - Fuel pressure regulator
l - Low‑pressure boost pump
m - Lift pump assembly
n - Water separating fuel filter
o - Fuel filter
p - High‑pressure fuel pump
46219
a
b
c
d
f
h
i
j
k
l
n
o
p
g
e
m
