Powerhead
Page 4A-38 90-8M0050731 MAY 2011

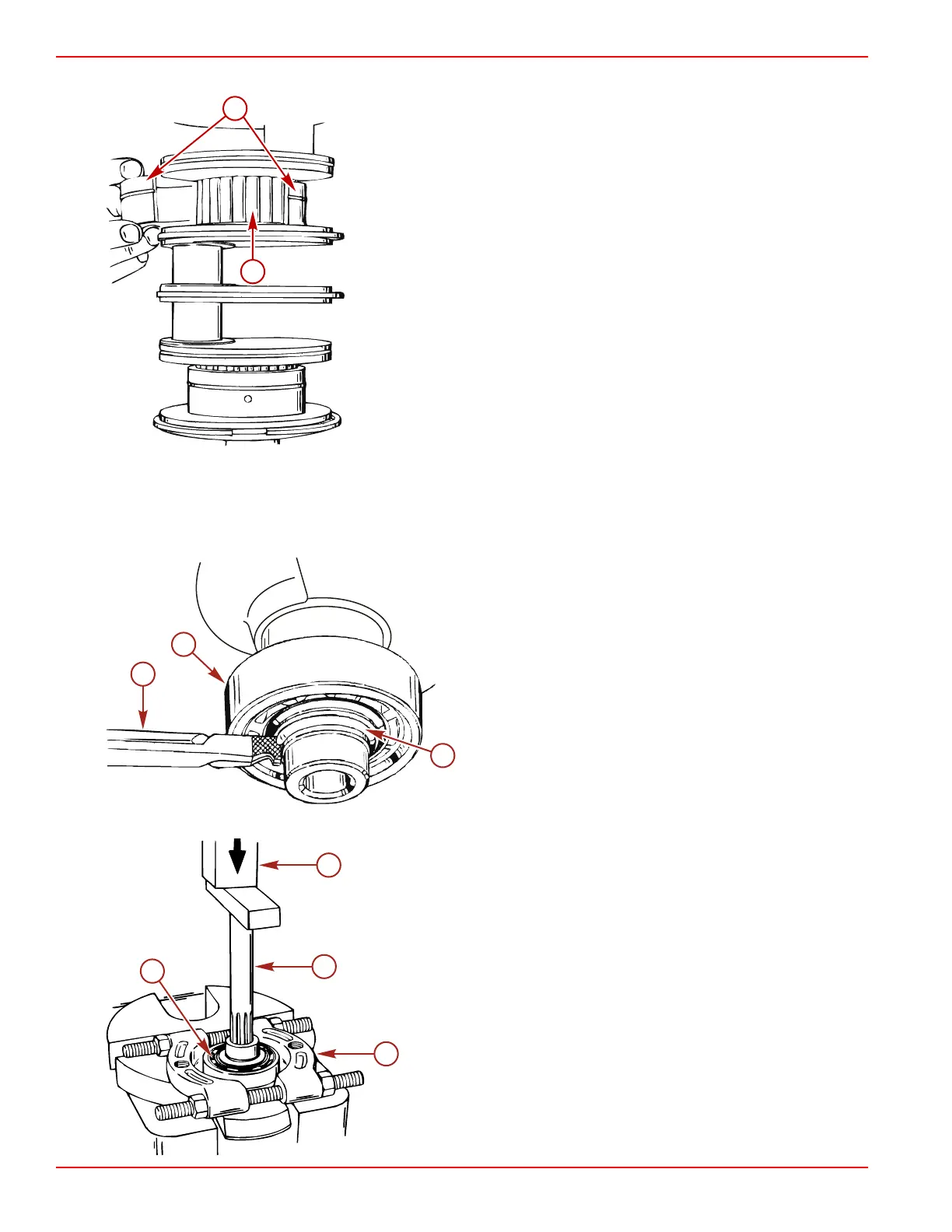

22. Remove the bearing race and the roller bearings.
a - Bearing race
b - Roller bearings
23. Inspect the lower crankshaft ball bearing for damage.
IMPORTANT: Do not remove the lower crankshaft ball bearing unless replacement is required.
Lower Crankshaft Ball Bearing Removal
1. Remove the crankshaft ball bearing retaining ring with a snap ring pliers.
a - Pliers
b - Crankshaft ball bearing
c - Retaining ring
2. Install the universal puller plate onto the crankshaft. Press the crankshaft ball bearing off with the powerhead stand.
a - Press
b - Powerhead stand
c - Crankshaft ball bearing
d - Universal puller plate
a
b
31436
a
b
c
8644
a
b
d
c
8646
