Powerhead
Page 4A-68 90-8M0050731 MAY 2011

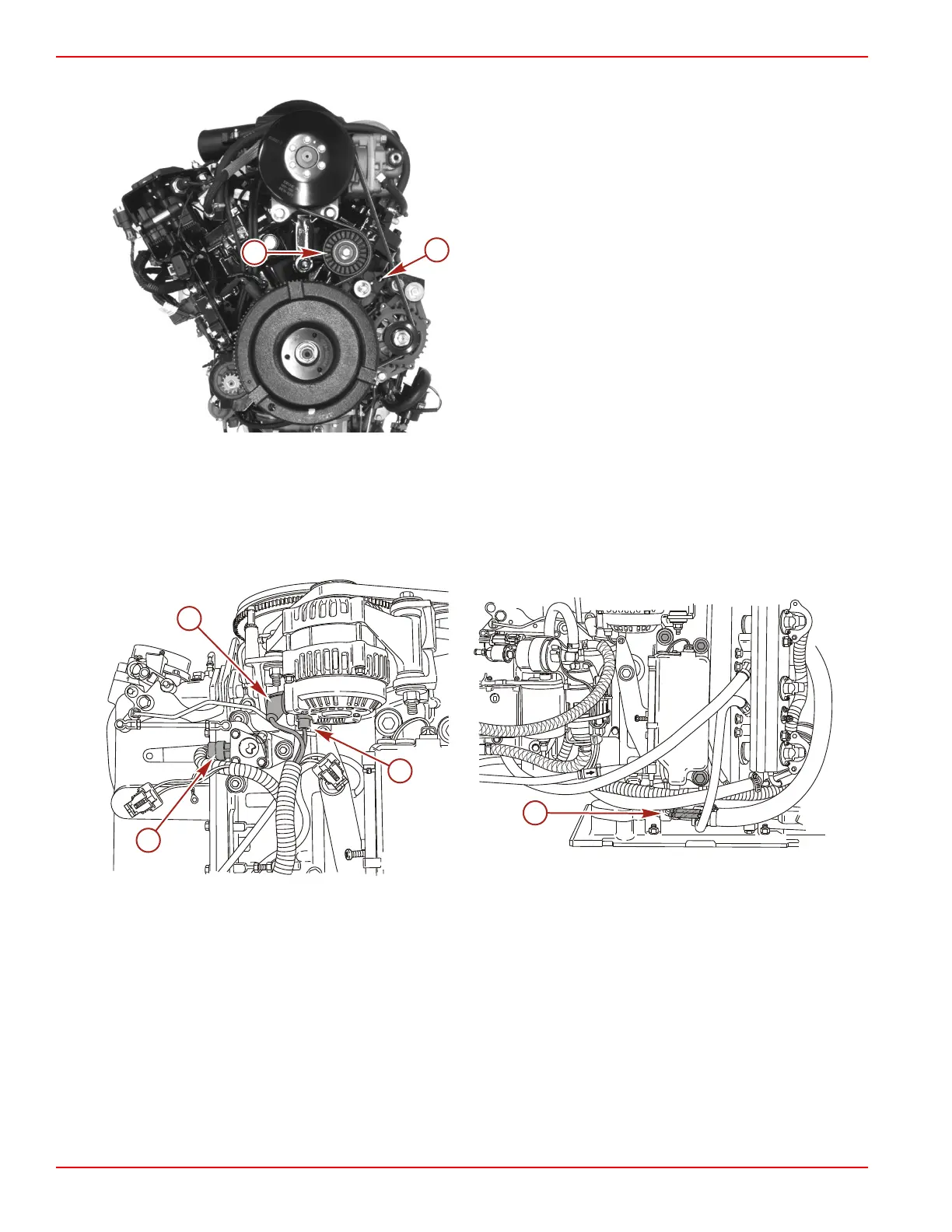

14. Use a 3/8 in. square drive on the belt tension arm and install the belt to the air compressor pulley.
a - Belt tensioner
b - 3/8 in. square drive
Electrical Plate and Harness Installation
1. Install the electrical harness assembly onto the engine.
2. Connect the low oil sensor bullet connectors.
3. Install the sense lead onto the alternator.
4. Connect the TPS harness connection.
5. Install the output lead onto the alternator.
a - Alternator output lead
b - TPS harness connection
c - Alternator sense lead
d - Low oil sensor bullet connectors
6. Install the nut and screw securing the electrical plate.
