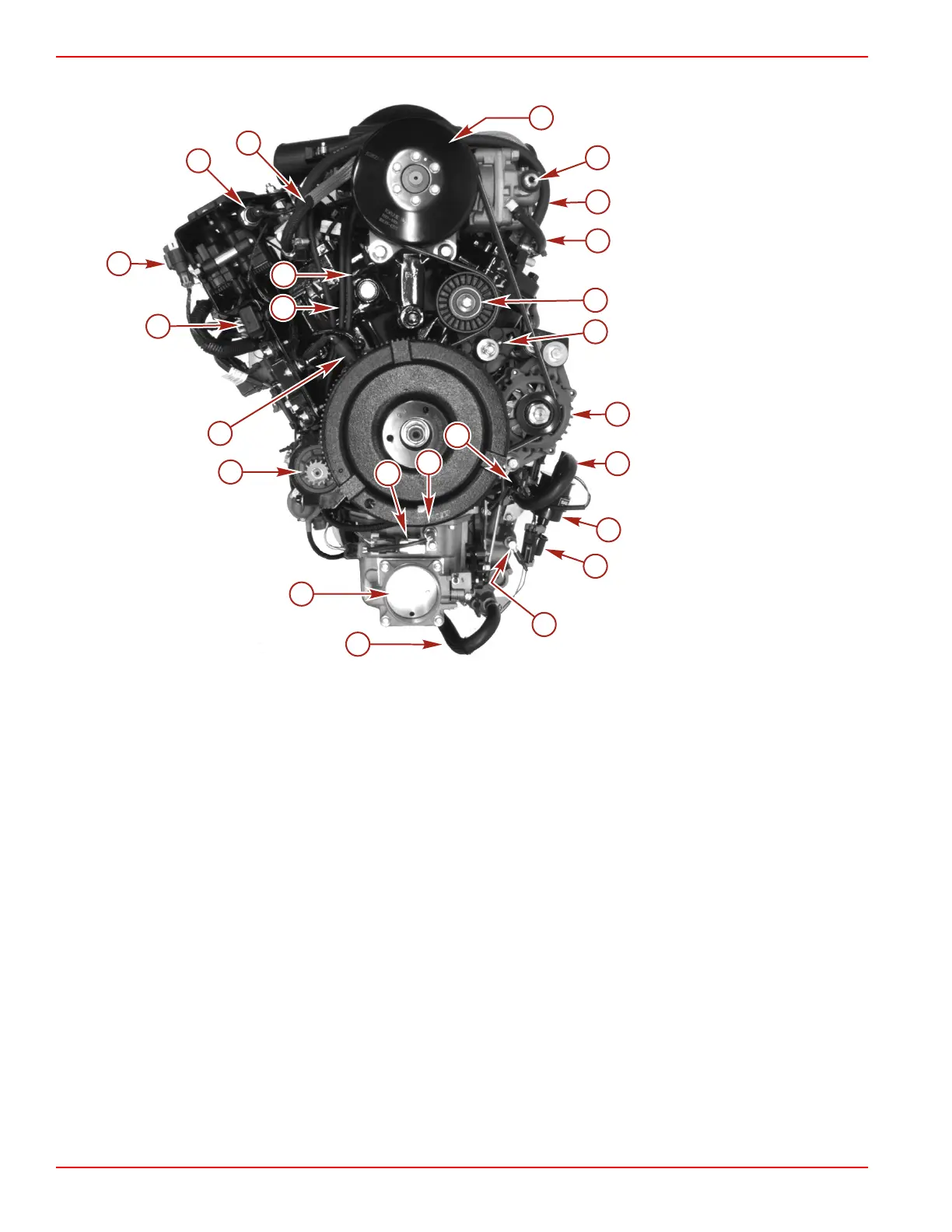

200 OptiMax SportJet Powerhead Top View
1 - Air compressor pulley
2 - Air compressor inlet
3 - Water bypass hose
4 - Air compressor coolant hose
5 - Belt tensioner
6 - Tensioner grease fitting
7 - Alternator
8 - Fuel inlet to fuel/separator
9 - Fuel lift pump
10 - Fuel filter
11 - Vapor separator tank (VST)
vent fitting
12 - Throttle position sensor (TPS)
13 - Air temperature sensor
14 - Manifold absolute pressure
(MAP) sensor
15 - 90 psi fuel hose to fuel rail
16 - Throttle plate assembly
17 - Starter motor
18 - Crankshaft position sensor
(CPS)
19 - Fuse cover
20 - Oil return hose from air
compressor
21 - Oil hose to air compressor
22 - SmartCraft connector
23 - Water pressure sensor
24 - 80 psi air hose to fuel rail
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
24
23
22
