Direct Fuel Injection
Page 3B-72 90-8M0050731 MAY 2011
r - Fuel injector (6)
s - Water outlet to expansion chamber outlets
t - Tracker valve
u - Starboard fuel rail
v - Compressor outlet of 655 ± 14 kPa (95 ± 2 psi)
w - Low‑pressure air
x - High‑pressure air

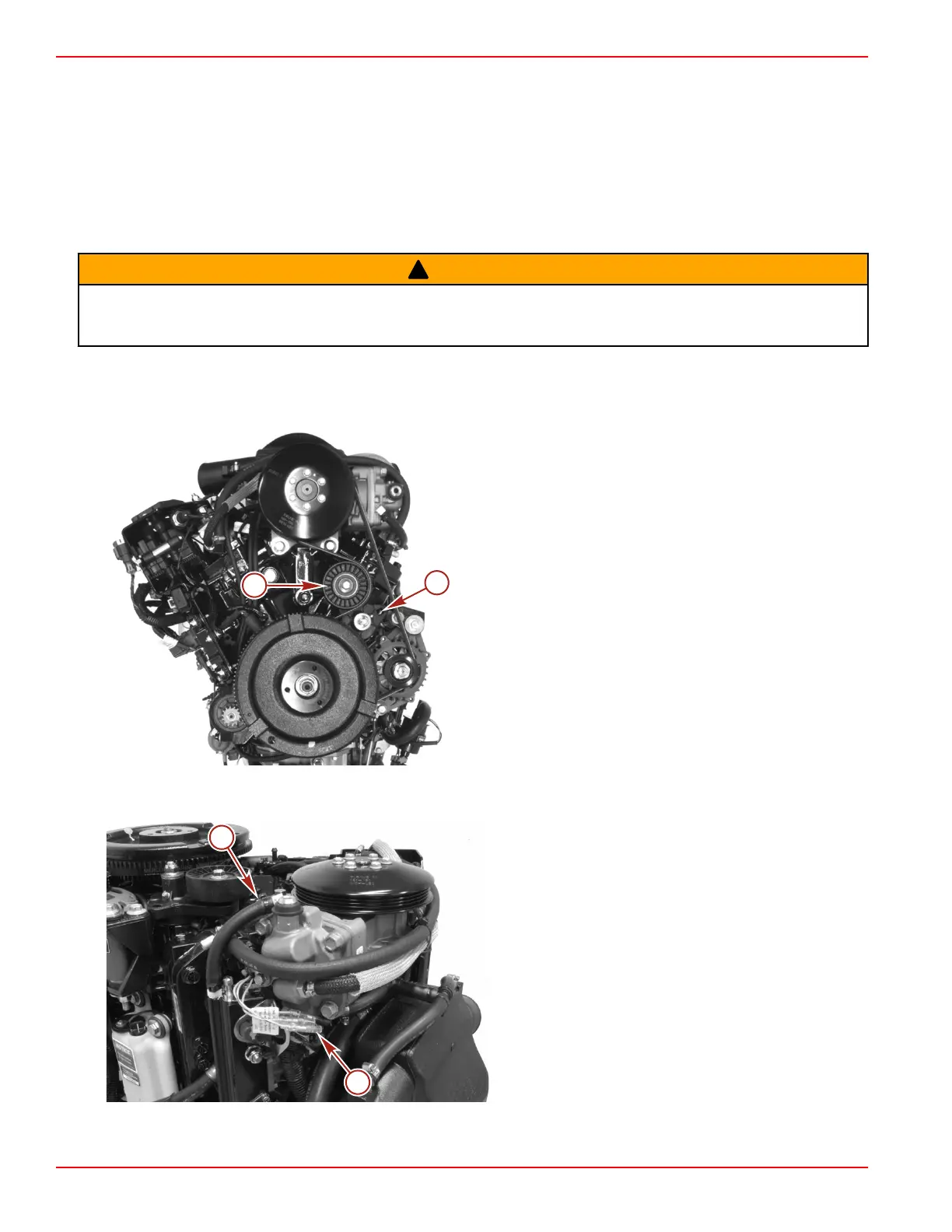

Air Compressor Removal
!
WARNING
Performing service or maintenance without first disconnecting the battery can cause product damage, personal injury, or death
due to fire, explosion, electrical shock, or unexpected engine starting. Always disconnect the battery cables from the battery
before maintaining, servicing, installing, or removing engine or drive components.
1. Disconnect both of the battery cables from the battery.
2. Remove the vent hose from the flywheel cover. Remove the flywheel cover.
3. Use a 3/8 in. square drive on the belt tension arm to remove the belt.
a - Belt tensioner
b - 3/8 in. square drive
4. Disconnect the air compressor bullet connectors.
5. Cut the cable tie securing the water inlet hose to the air compressor. Remove the water inlet hose.
a - Water inlet hose
b - Bullet connectors
6. Remove the two screws securing the retainer to the fuel rail. Remove the air compressor hose with the fitting from the fuel
rail.
