Mercury 200 OptiMax Jet Drive Service Manual

Jet Installation
Page 1D-14 90-8M0050731 MAY 2011

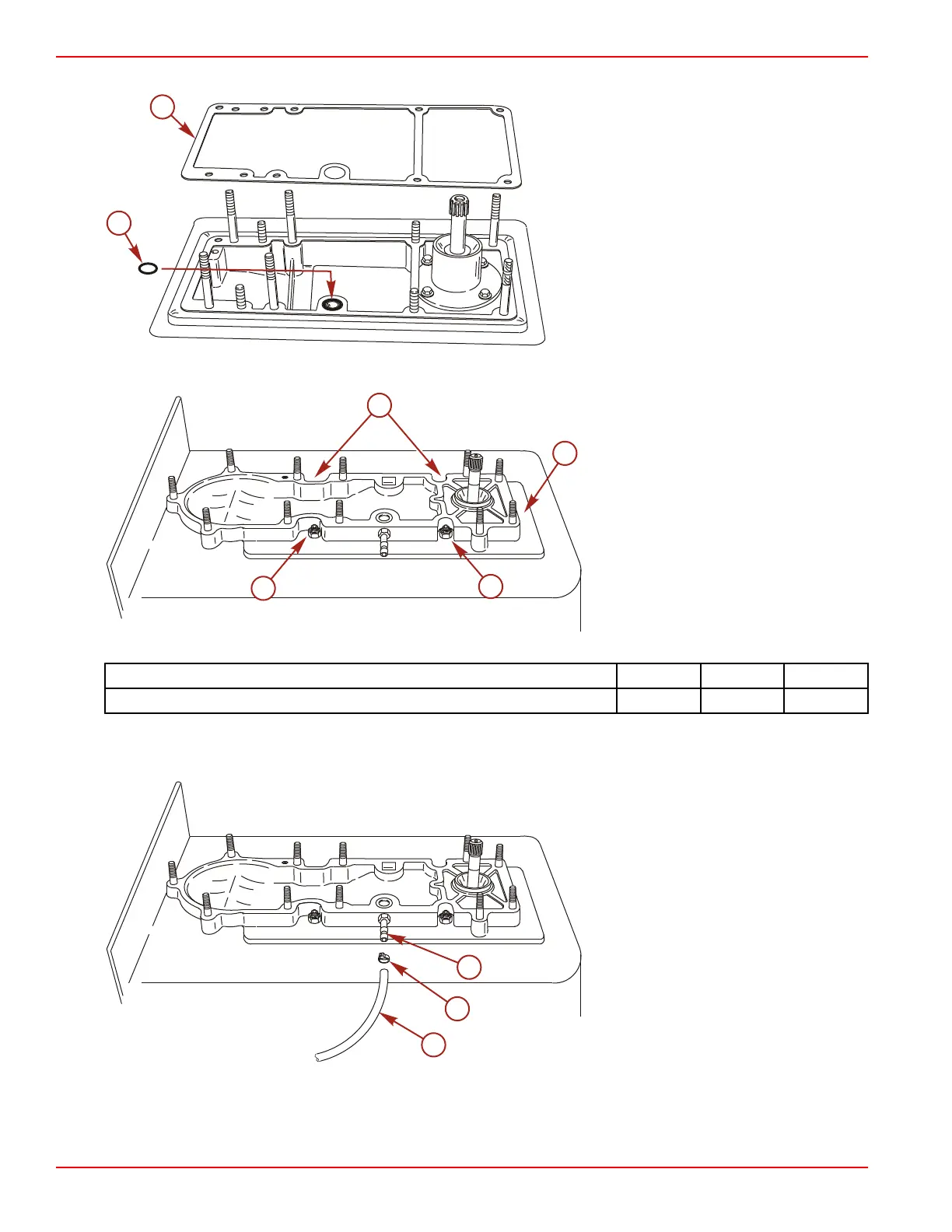

13. Install the gasket and O‑ring seal on the jet pump.
a - Gasket
b - O‑ring seal
14. Install the drive housing cover on the jet pump with four M10 x 1.5 nuts. Tighten the nuts to the specified torque.
a - M10 x 1.5 nut (4)
b - Drive housing cover
Description Nm lb‑in. lb‑ft
M10 x 1.5 nuts 47 35
Installing the Flush Kit
1. Attach the flush hose to the fitting and fasten with a cable tie. Failure to fasten the hose will allow water to fill the boat.
a - Fitting
b - Cable tie
c - Flush hose
a
b
44454
a
a
b
a
20063
c
a
b
43945
