Oil Injection
Page 3C-10 90-8M0050731 MAY 2011
Installation

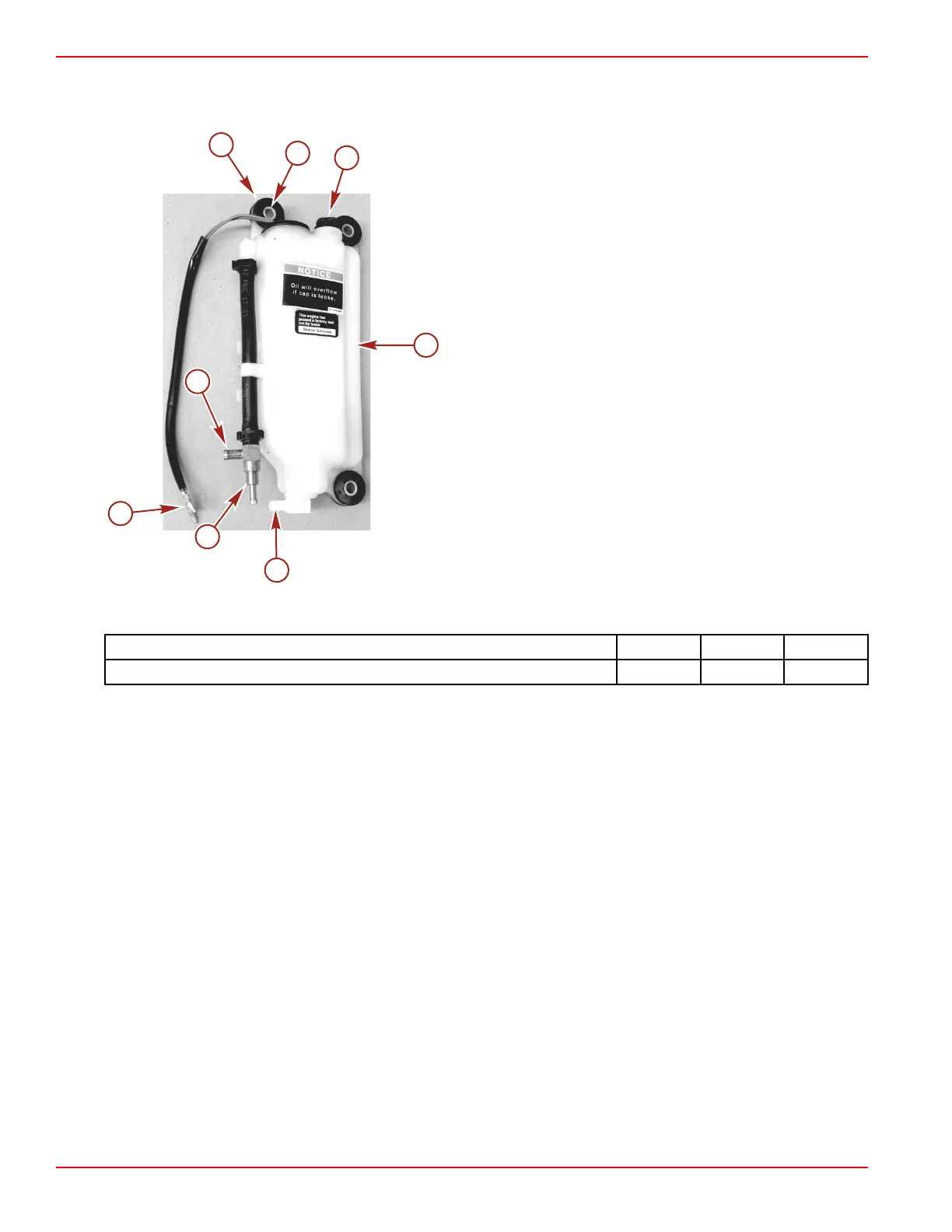

1. Install the rubber grommets and bushings onto the oil reservoir.
a - Grommet (3)
b - Bushing (3)
c - Vent cap
d - Oil reservoir
e - Reservoir oil outlet fitting to oil pump
f - Oil reservoir low oil vent
g - Low oil switch bullet connectors
h - Oil reservoir oil inlet fitting
2. Install the oil reservoir onto the cylinder block and secure with two 0.312‑18 x 1.250 inch screws and washers. Tighten the
screws to the specified torque.
Description Nm lb‑in. lb‑ft
Screws (0.312‑18 x 1.250 in.) (2) 19.2 170
3. Install the oil hose and secure the oil hose with a cable tie.
4. Connect the oil tank low oil switch bullet connectors to the engine harness.
