Direct Fuel Injection
90-8M0050731 MAY 2011 Page 3B-43

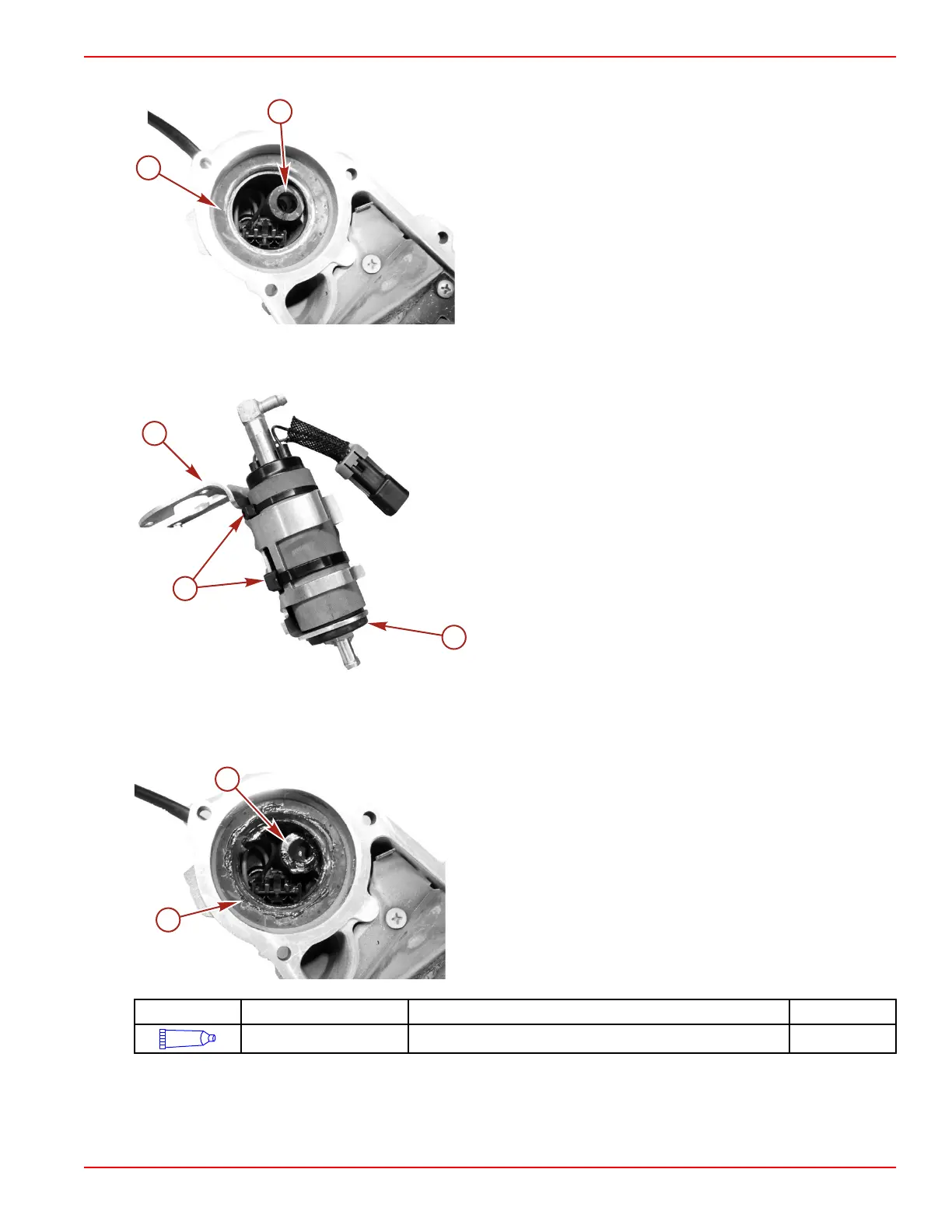

10. Remove and discard the fuel pump body seal and the fuel pump outlet seal.
a - Fuel pump body seal
b - Fuel pump outlet seal
IMPORTANT: Do not remove the electric fuel pump harness from the VST cover. If the electric fuel pump harness inside the
VST cover is damaged, the VST cover must be replaced.
11. Cut the cable ties securing the low‑pressure electric fuel pump to the bracket. Remove the low‑pressure fuel pump.
a - Low‑pressure electric fuel pump bracket
b - Cable ties
c - Grommet
VST Assembly
1. Install the new fuel pump body seal and the new fuel pump outlet seal into the VST cover. Lubricate the seals with Special
Lubricant 101.
a - Fuel pump body seal
b - Fuel pump outlet seal
Tube Ref No. Description Where Used Part No.
34
Special Lubricant 101 Fuel pump body seal and fuel pump outlet seal 92-802865Q02
2. Connect the fuel pump electrical harness to the fuel pump.
