Direct Fuel Injection
Page 3B-44 90-8M0050731 MAY 2011

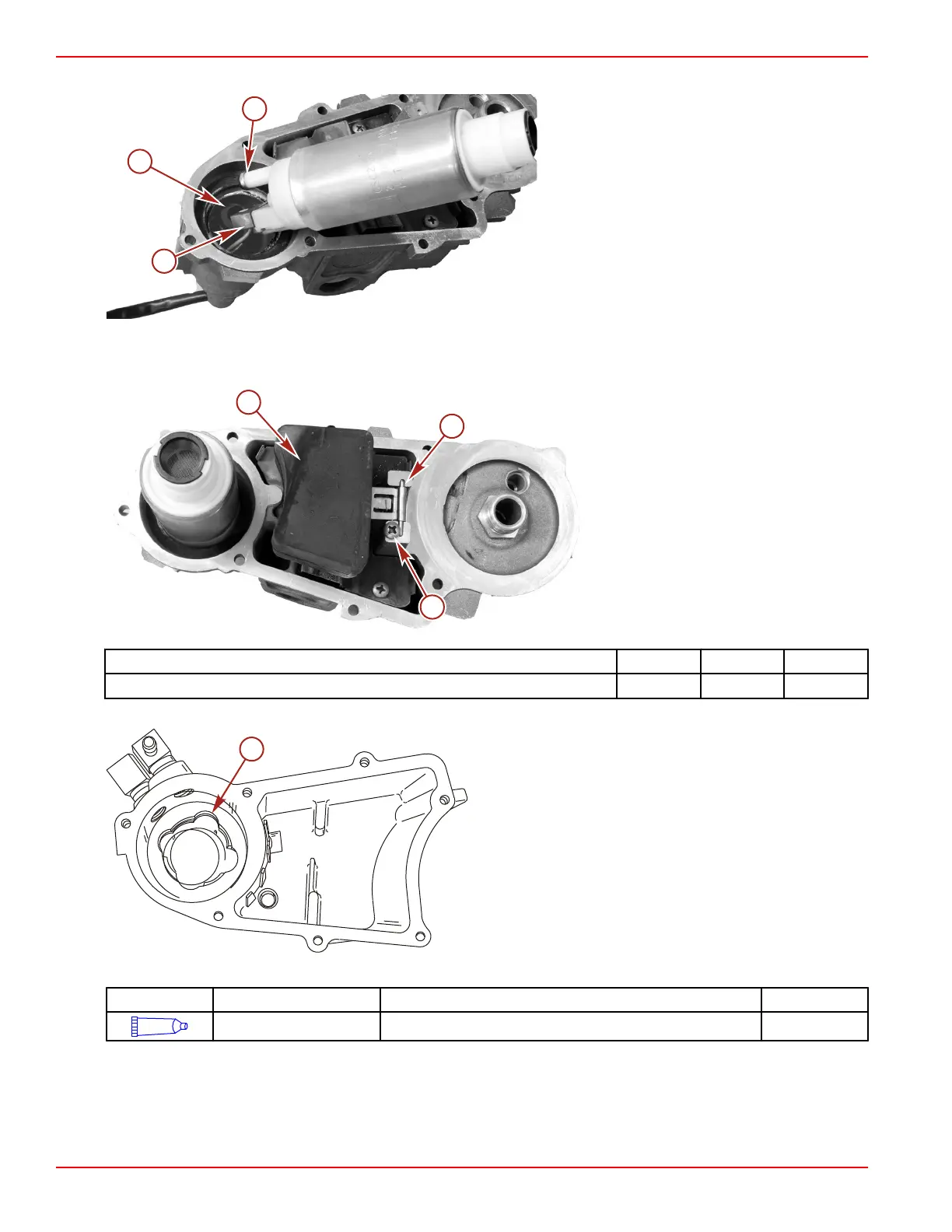

3. Align the fuel pump outlet with the fuel pump outlet seal. Push the fuel pump into the seals.
a - Fuel pump electrical harness connector
b - Fuel pump outlet seal
c - Fuel pump outlet
4. Install the needle onto the float.
5. Install the float with the needle onto the VST cover. Insert the pin into the float arm. Secure the float pin with the float pin
screw. Tighten the float pin screw to the specified torque.
a - Float
b - Float pin
c - Screw
Description Nm lb‑in. lb‑ft
Float pin screw 1 9
6. Lubricate the inside diameter of the fuel pump body seal with Special Lubricant 101.
a - Fuel pump body seal
Tube Ref No. Description Where Used Part No.
34
Special Lubricant 101 Fuel pump body seal 92-802865Q02
7. Install the VST cover gasket onto the VST tank.
