Mercury 200 OptiMax Jet Drive Service Manual

General Information
Page 1C-4 90-8M0050731 MAY 2011
Powerhead Views

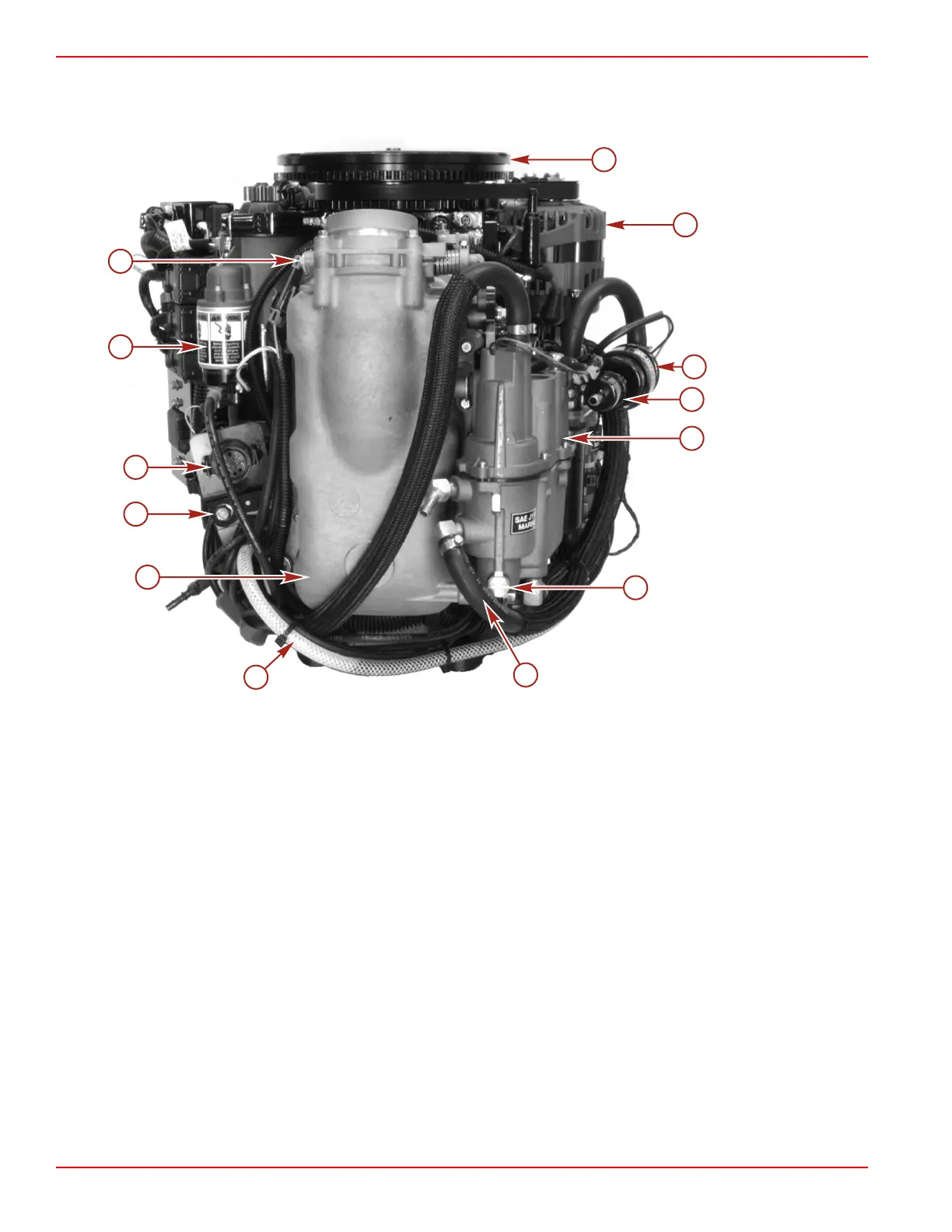

200 OptiMax SportJet Powerhead Front View
1 - Flywheel
2 - Alternator
3 - Fuel lift pump
4 - Fuel filter
5 - Vapor separator tank (VST)
6 - VST drain plug
7 - VST fuel inlet hose
8 - Oil pump inlet hose
9 - Expansion chamber
10 - Oil pump
11 - 14 pin engine harness connector
12 - Starter motor solenoid
13 - Manifold absolute pressure (MAP) sensor
45357
1
2
3
4
5
6
9
10
12
13
11
7
8
