Ignition
Page 2A-2 90-8M0050731 MAY 2011

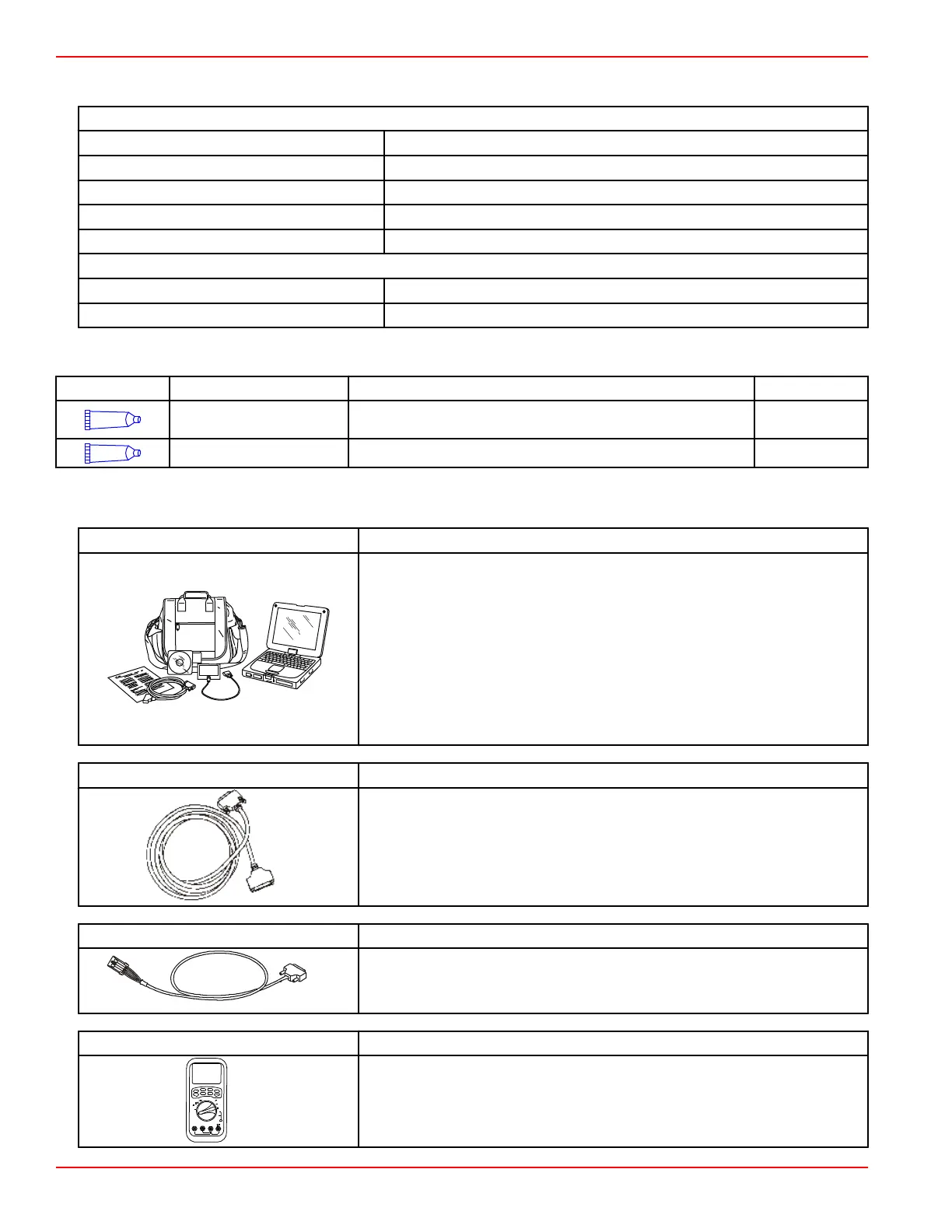

Ignition Specifications
Ignition Specifications
Type Digital inductive
Spark plug NGK IZFR6J
Spark plug gap 1.1 mm (0.043 in.)
Maximum timing Not adjustable; PCM controlled
Idle timing Not adjustable; PCM controlled
Throttle position sensor
At idle 0.4–1.3 VDC
At WOT 4.0–4.7 VDC
Lubricant, Sealant, Adhesives
Tube Ref No. Description Where Used Part No.
9
Loctite 567 PST Pipe
Sealant
Cylinder head coolant temperature sensor threads 92-809822
25
Liquid Neoprene All ring terminal connections 92- 25711 3
Special Tools
Computer Diagnostic System (CDS) Order through SPX
Monitors all electrical systems for proper function, diagnostics, and calibration
purposes. For additional information, pricing, or to order the Computer Diagnostic
System contact:
SPX Corporation
28635 Mound Rd.
Warren, MI 48092
or call:
USA ‑ 1‑800‑345‑2233
Canada ‑ 800‑345‑2233
Europe ‑ 49 6182 959 149
Australia ‑ (03) 9544‑6222
Extension Cable 84‑825003A 1
Data link extension harness (3.05 m [10 ft.]) between the adapter harness and the
Digital Diagnostic Terminal or Computer Diagnostic System (CDS).
Adapter Harness 84‑822560A13
Data link harness between engine and computer diagnostic system (CDS).
DMT 2004 Digital Multimeter 91‑892647A01
A
C O
M
m
A
V H z
mV
V
H z TEMP
m A
A
IG
IP
OFF
H z
TEMP
4516
Measures RPM on spark ignition (SI) engines, ohms, amperes, AC and DC
voltages; records maximums and minimums simultaneously, and accurately reads
in high RFI environments.
