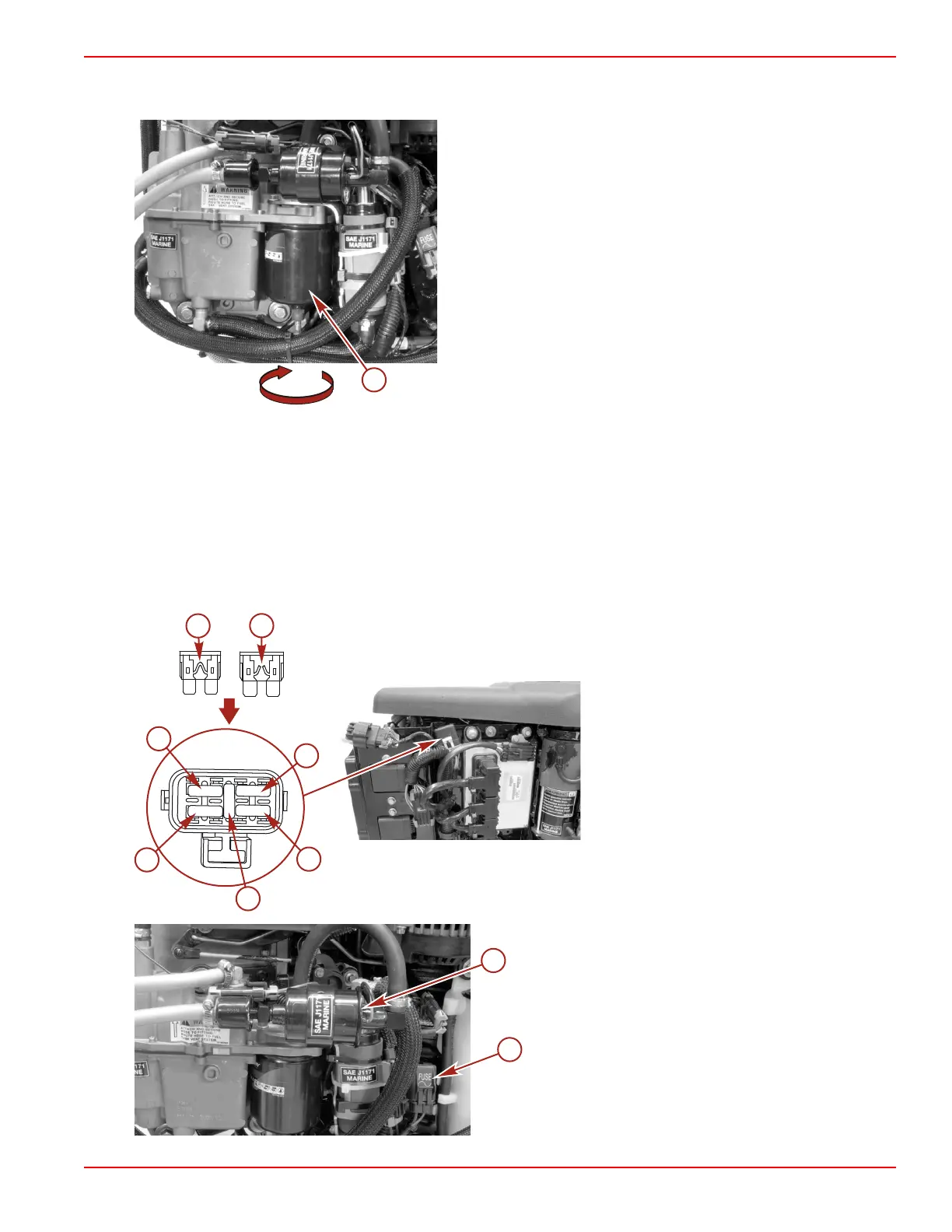

2. Disconnect the wire from the bottom of the filter. Remove the filter (a) by turning the filter in the direction of the arrow
(clockwise). Tip the filter to drain the fluid into a suitable container.
a - Water separating fuel filter
3. Lubricate the sealing ring on the filter with oil. Thread on the filter and tighten securely by hand. Reconnect the wire to the
filter.
Fuses
IMPORTANT: Always carry spare 5 and 20 amp fuses.
The electrical wiring circuits on the engine are protected from overload by fuses in the wiring. If a fuse is open, try to locate and
correct the cause of the overload. If the cause is not found, the fuse may open again.
1. Open the fuse holder and look at the silver colored band inside the fuse. If the band is broken, replace the fuse.
2. Replace the fuse with a new fuse with the same rating.
The fuses and circuits are identified as follows:
a - Good fuse
b - Blown fuse
c - SmartCraft data bus circuit ‑ 5 amp fuse
d - Ignition system circuit ‑ 20 amp fuse
e - Spare fuse
f - Electric fuel pump (VST)/ECM driver power/
oil pump circuit ‑ 20 amp fuse
g - Main power relay ‑ 15 amp fuse
a - Lift pump
b - Lift pump circuit ‑ 5 amp fuse
