Jet Installation
Page 1D-16 90-8M0050731 MAY 2011

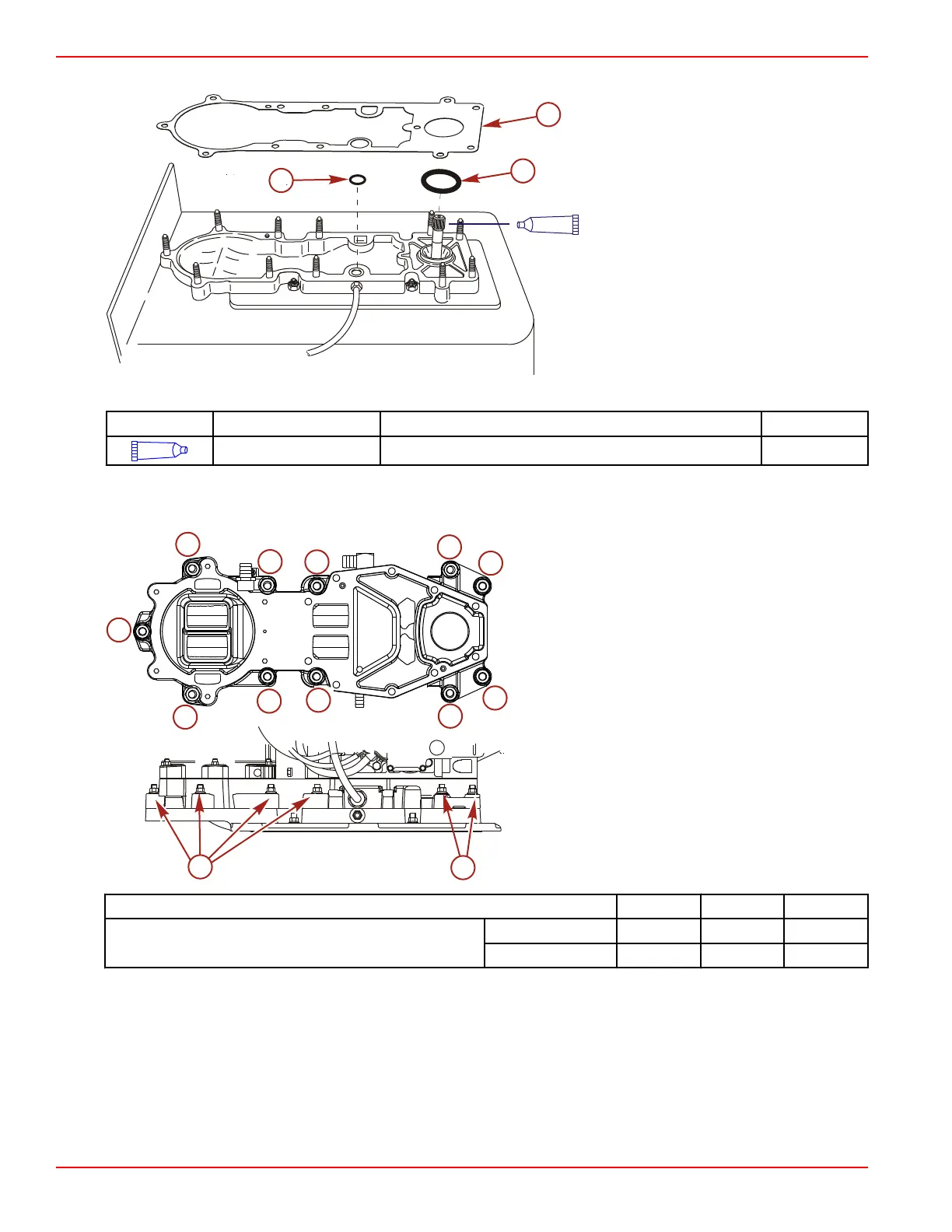

4. Lubricate the driveshaft splines with Special Lubricant 101.
a - Powerhead gasket
b - Water inlet O‑ring
c - Driveshaft opening O‑ring
Tube Ref No. Description Where Used Part No.
34
Special Lubricant 101 Driveshaft splines 92-802865Q02
5. Lower the powerhead onto the drive housing cover. Align the driveshaft splines with the crankshaft.
6. Secure the powerhead to the drive housing cover with eleven M10 x 1.5 nuts. Follow the torque sequence shown and tighten
the nuts to the specified torque.
a - M10 x 1.5 nuts (11)
Description Nm lb‑in. lb‑ft
M10 x 1.5 nuts
First torque
27 20
Final torque
47 35
Flywheel Cover Removal and Installation
Removal
1. Detach the retaining strap.
a
c
b
20289
34
10
8
6
4
2
1
3
7
5
9
11
a
a
20294
