Charging and Starting System
Page 2B-30 90-8M0050731 MAY 2011

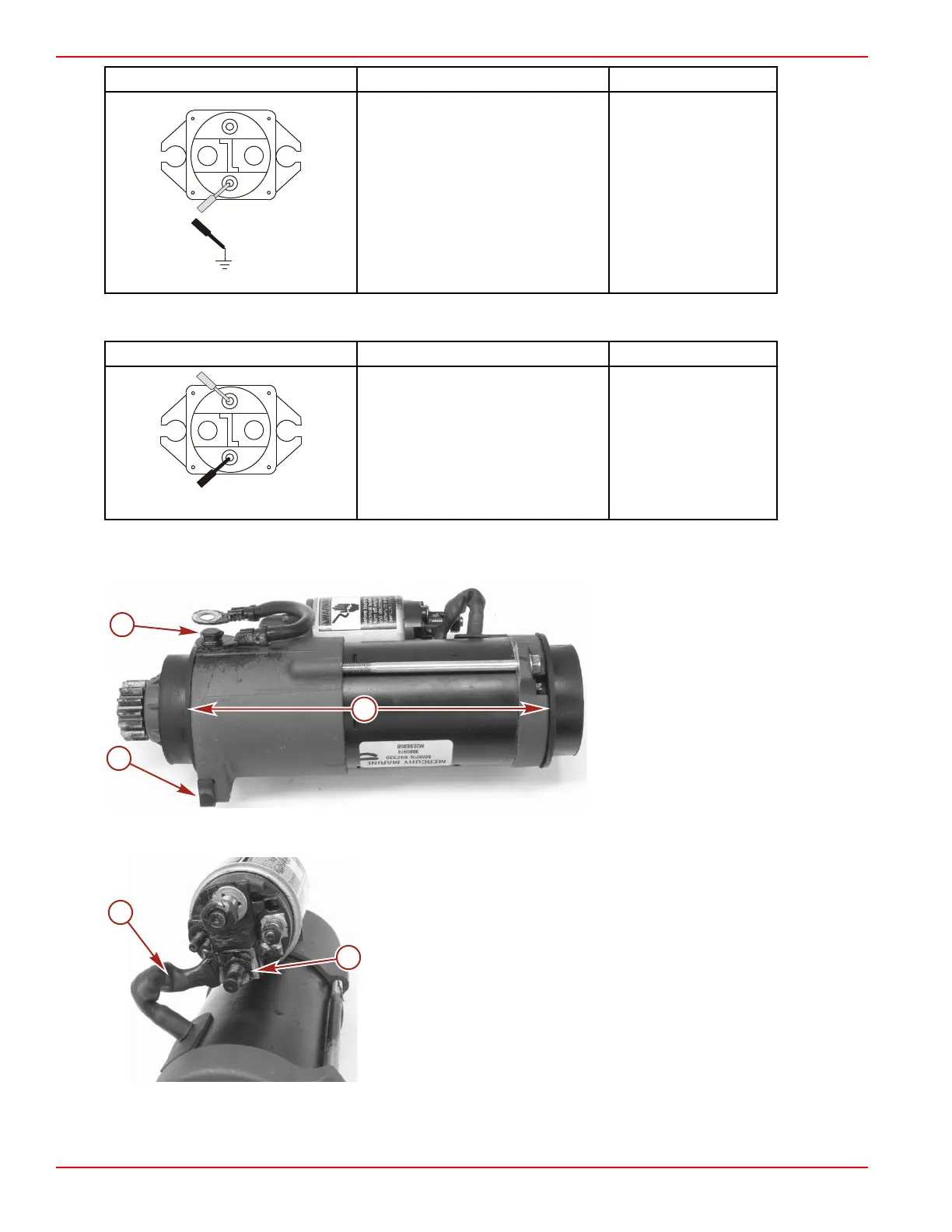

Example Description Reading
Connect a meter lead on the negative
(–) silver terminal and the other lead to
engine ground.
Continuity
5. If all previous tests pass, remove all push‑on terminal connectors from the start solenoid and use an ohmmeter to measure
the resistance across the silver terminals.
Example Description Reading
Connect a meter lead on each silver
pin.
2.5–2.75 Ω
Starter Disassembly (Solenoid Driven Bendix)
1. Remove the two collars, rubber stops, and the screw securing the starter ground wire.
a - Rubber stops (2)
b - Collars (2)
c - Screw securing ground wire
2. Remove the nut and lockwasher securing the starter brush lead to the solenoid. Remove the starter brush lead from the
solenoid.
a - Starter brush lead
b - Nut and lockwasher
