Mercury 200 OptiMax Jet Drive Service Manual

Oil Injection
90-8M0050731 MAY 2011 Page 3C-7

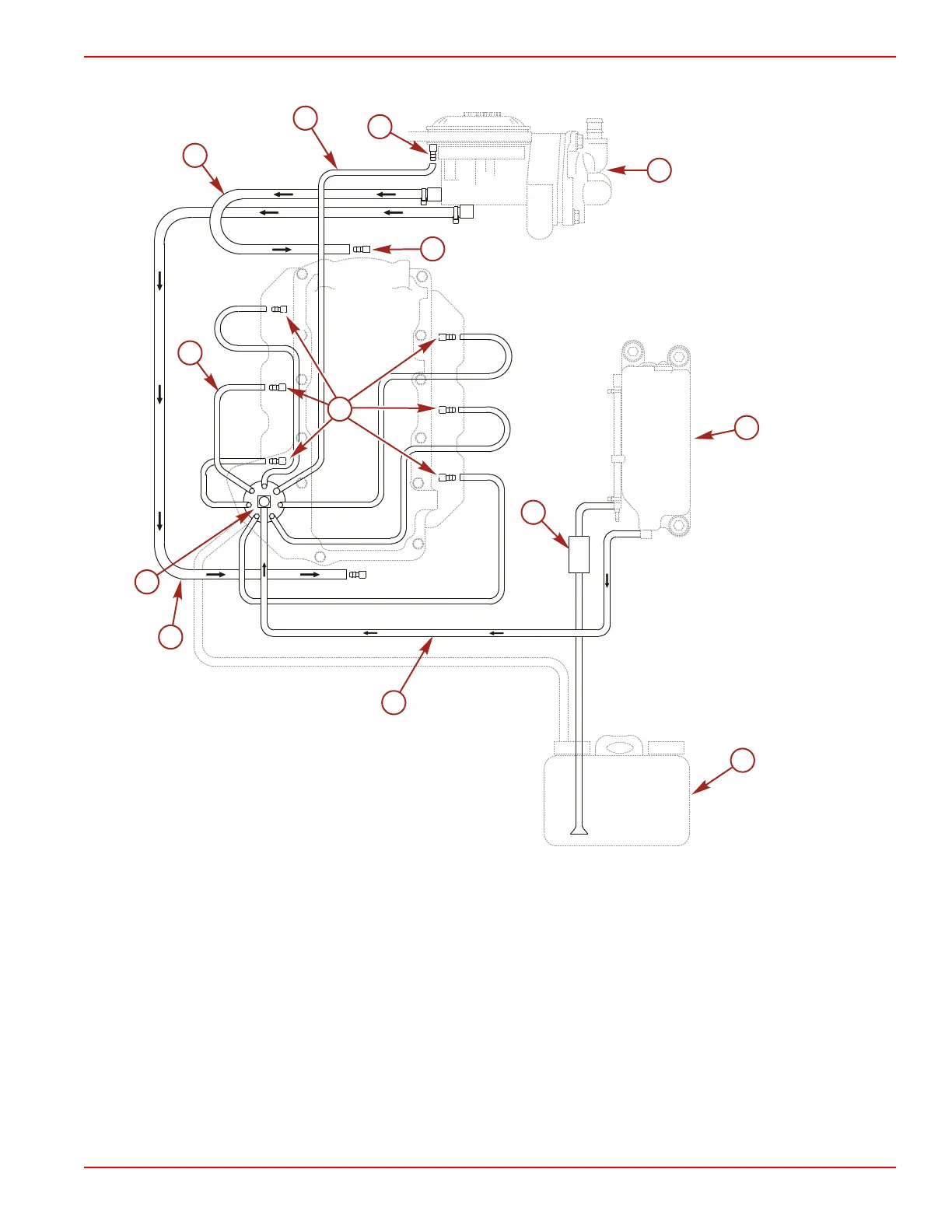

Oil System Hose Installation (S/N 0T178500 and Above)
a - Remote oil tank
b - Engine‑mounted oil reservoir
c - Filter
d - Oil hose to the oil pump
e - Oil hose to lower main bearing
f - Oil pump
g - Oil hoses to the cylinders
h - Check valve
i - Oil hose to upper main bearing
j - Oil hose to the air compressor
k - Air compressor
l - Fitting
l
j
i
g
f
e
d
c
b
k
l
a
h
16410
